Network Engineer — 07. IP Addressing (IPv4/IPv6)

2025-10-18 Networking IPv4 IPv6 VLAN Cisco

IP Addressing — Diploma Project

IPv4 — Full Network

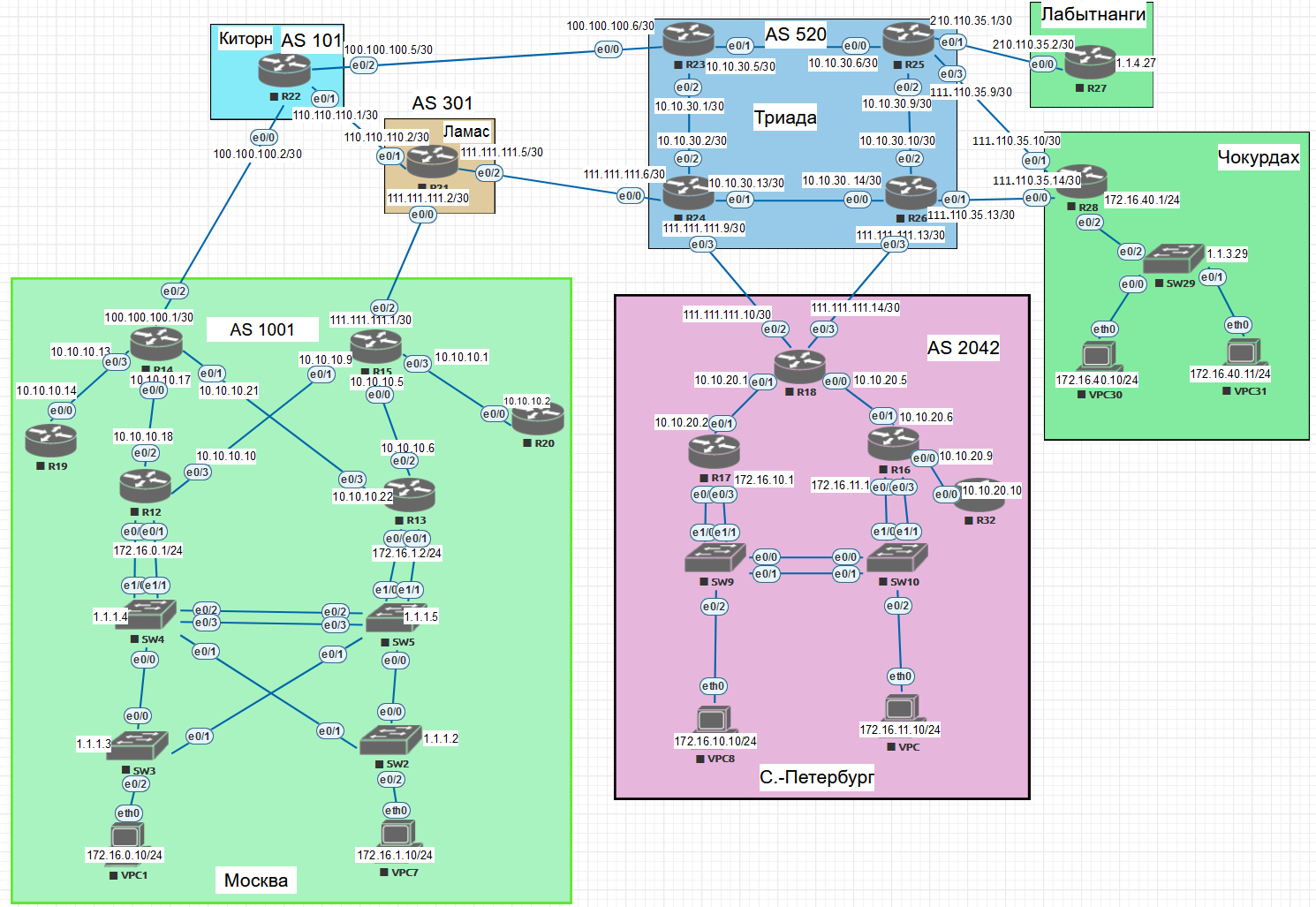

IPv4 full topology

Goal: Plan and document the address space for the lab topology. Configure IPs on all active ports. Assign each VPC to its own VLAN in every office. Configure management VLANs for network devices. Optimize link usage and prevent broadcast storms. Use both IPv4 and IPv6.

ISPs (Providers)

  • Kitorn
  • Lamas
  • Triada
DevicePortIPv4NoteRegion
R22e0/0100.100.100.2/30R14 (Msk)Kitorn
e0/1110.110.110.1/30R21 (Lamas)
e0/2100.100.100.5/30R23 (Triada)
R21e0/0111.111.111.2/30R15 (Msk)Lamas
e0/1110.110.110.2/30R22 (Kitorn)
e0/2111.111.111.5/30R24 (Triada)
R23e0/0100.100.100.6/30R22 (Kitorn)Triada
e0/110.10.30.5/30R25 (Triada)
e0/210.10.30.1/30R24 (Triada)
R24e0/0111.111.111.6/30R21 (Lamas)
e0/110.10.30.13/30R26 (Triada)
e0/210.10.30.2/30R23 (Triada)
e0/3111.111.111.9/30R18 (Spb)
R25e0/010.10.30.6/30R23 (Triada)
e0/1210.110.35.1/30R27 (Labytnangi)
e0/210.10.30.9/30R26 (Triada)
e0/3111.110.35.9/30R28 (Chukordah)
R26e0/010.10.30.14/30R24 (Triada)
e0/1111.110.35.13/30R28 (Chukordah)
e0/210.10.30.10/30R25 (Triada)
e0/3111.111.111.13/30R18 (Spb)

Moscow Office

DevicePortIPv4NoteIP-LoopbackRegion
R15e0/010.10.10.5R13 (local)1.1.1.15/32MOSCOW
e0/110.10.10.9R12 (local)
e0/2111.111.111.1/30R21 (Lamas)
e0/310.10.10.1R20 (local)
R14e0/010.10.10.17R12 (local)1.1.1.14/32
e0/110.10.10.21R13 (local)
e0/2100.100.100.1/30R22 (Kitorn)
e0/310.10.10.13R19 (local)
R13e0/0172.16.1.2/24Aggregation channel1.1.1.13/32
e0/210.10.10.6R15 (local)
e0/310.10.10.22R14 (local)
R12e0/0172.16.0.1/24Aggregation channel1.1.1.12/32
e0/210.10.10.18R14 (local)
e0/310.10.10.10R15 (local)
R19e0/010.10.10.14R14 (local)
R20e0/010.10.10.2R15 (local)
SW21.1.1.2/32
SW31.1.1.3/32
SW41.1.1.4/32
SW51.1.1.5/32

Saint Petersburg Office

DevicePortIPv4NoteIP-LoopbackRegion
R18e0/010.10.20.5R16 (local)1.1.2.18St. Petersburg
e0/110.10.20.1R17 (local)
e0/2111.111.111.10/30R24 (Triada)
e0/3111.111.111.14/30R26 (Triada)
R17e0/110.10.20.2R18 (local)1.1.2.17
e0/2172.16.10.1Aggregation channel
R16e0/010.10.20.9R32 (local)1.1.2.16
e0/110.10.20.6R18 (local)
e0/2172.16.11.1Aggregation channel
R32e0/010.10.20.10R16 (local)1.1.2.32
SW101.1.2.10
SW91.1.2.9

Chukordah Office

DevicePortIPv4NoteIP-LoopbackRegion
R28e0/0111.110.35.14/30R26 (Triada)1.1.3.28Chukordah
e0/1111.110.35.10/30R25 (Triada)
e0/2172.16.40.1/24SW29 (Chukordah)
SW291.1.3.29

Labytnangi Office

DevicePortIPv4NoteRegion
R27e0/0210.220.35.2R25 (Triada)Labytnangi

Network Summary

MoscowNetworksMaskLoopback
P2P10.10.10.0/241.1.1.0/24
LAN1172.16.0.0/24
172.16.1.0/24
SpbNetworksMaskLoopback
P2P10.10.20.0/241.1.2.0/24
LAN2172.16.10.0/24
172.16.11.0/24
ChukordahNetworkMaskLoopback
LAN3172.16.40.0/241.1.3.0/24
LabytnangiNetworkMaskLoopback
LAN410.10.50.0/241.1.4.0/24

ISP internal addressing is not our concern — they provide internet access.

IPv6

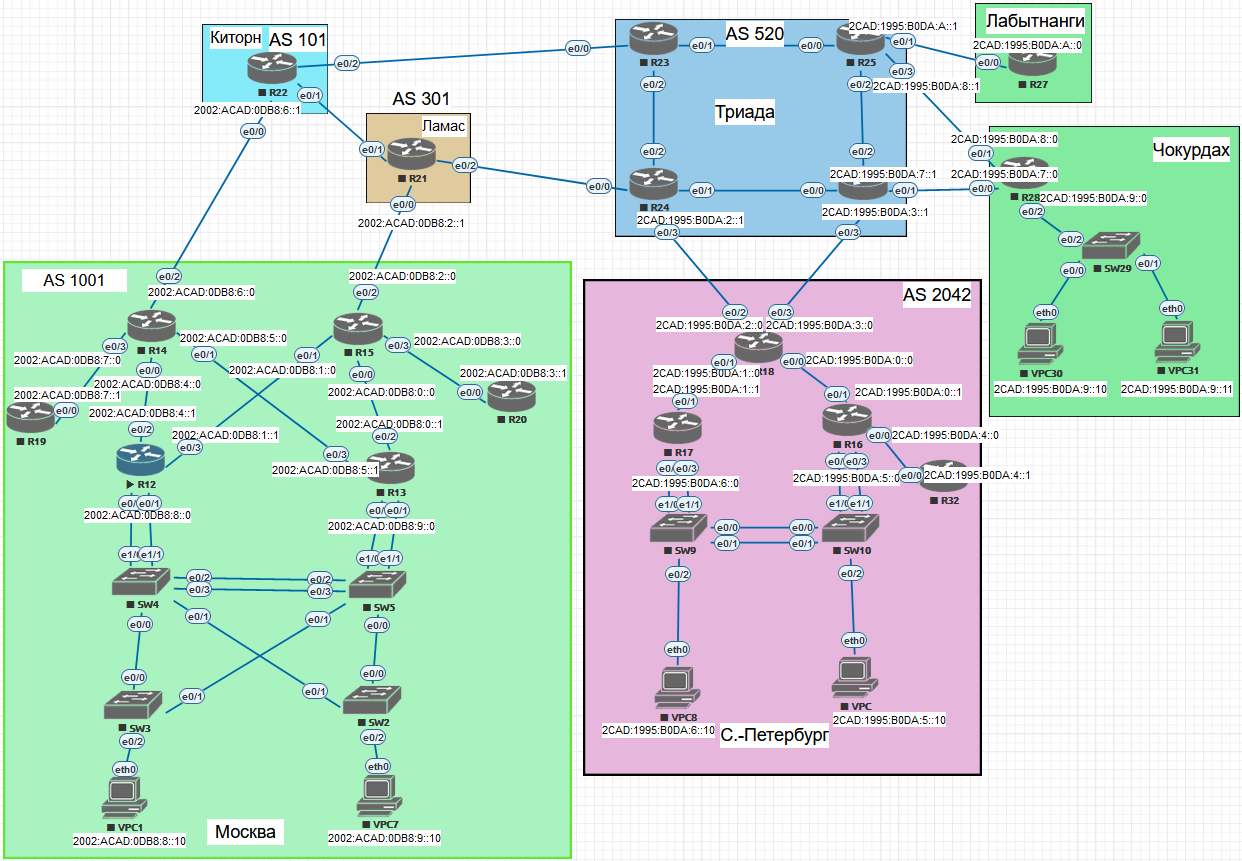

IPv6 topology

Moscow

DevicePortIPv6NoteRegion
R15e0/02002:ACAD:0DB8:0::0R13 (local)MOSCOW
e0/12002:ACAD:0DB8:1::0R12 (local)
e0/22002:ACAD:0DB8:2::0R21 (Lamas)
e0/32002:ACAD:0DB8:3::0R20 (local)
R14e0/02002:ACAD:0DB8:4::0R12 (local)
e0/12002:ACAD:0DB8:5::0R13 (local)
e0/22002:ACAD:0DB8:6::0R22 (Kitorn)
e0/32002:ACAD:0DB8:7::0R19 (local)
R13e0/02002:ACAD:0DB8:8::0Aggregation
e0/22002:ACAD:0DB8:0::1R15 (local)
e0/32002:ACAD:0DB8:5::1R14 (local)
R12e0/02002:ACAD:0DB8:9::0Aggregation
e0/22002:ACAD:0DB8:4::1R14 (local)
e0/32002:ACAD:0DB8:1::1R15 (local)
R19e0/02002:ACAD:0DB8:7::1R14 (local)
R20e0/02002:ACAD:0DB8:3::1R15 (local)

Saint Petersburg

DevicePortIPv6NoteRegion
R18e0/02CAD:1995:B0DA:0::0R16 (local)St. Petersburg
e0/12CAD:1995:B0DA:1::0R17 (local)
e0/22CAD:1995:B0DA:2::0R24 (Triada)
e0/32CAD:1995:B0DA:3::0R26 (Triada)
R17e0/12CAD:1995:B0DA:1::1R18 (local)
R16e0/02CAD:1995:B0DA:4::0R32 (local)
e0/12CAD:1995:B0DA:0::1R18 (local)
e0/22CAD:1995:B0DA:5::0Aggregation
R32e0/02CAD:1995:B0DA:4::1R16 (local)

Triada is the ISP for three of our sites, so the address pool is shared:

DevicePortIPv6NoteRegion
R27e0/02CAD:1995:B0DA:A::0R25 (Triada)Labytnangi
DevicePortIPv6NoteRegion
R28e0/02CAD:1995:B0DA:7::0R26 (Triada)Chukordah
e0/12CAD:1995:B0DA:8::0R25 (Triada)
e0/22CAD:1995:B0DA:9::0SW29

Summary:

  • 2002:ACAD:0DB8::/48 — allocated by Lamas
  • 2CAD:1995:B0DA::/48 — allocated by Triada

VLANs

CityVLANPurpose
Msk10Native
11Native
99Management
Spb12Native
13Native
98Management
Labytnangi14Native
97Management
Chukordah15Native
96Management

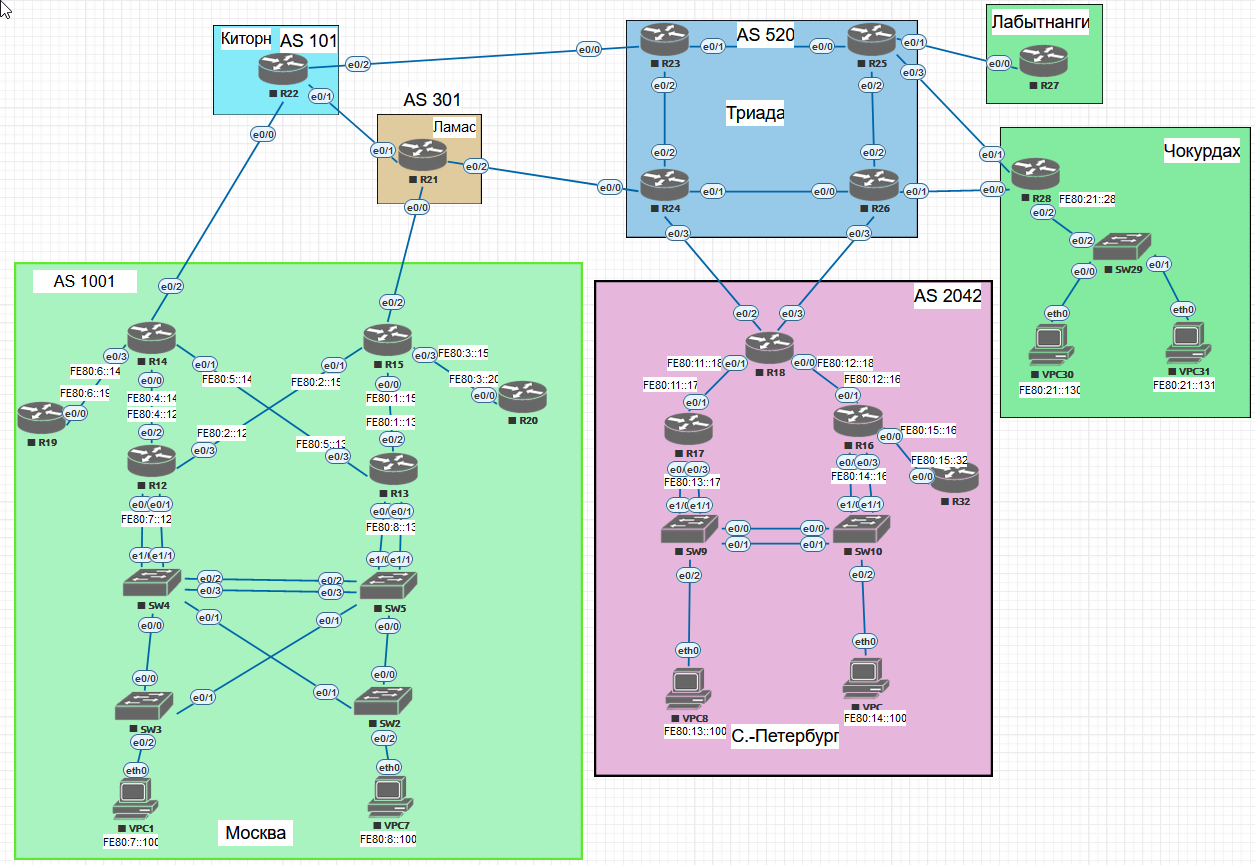

Link-local addressing

DevicePortIPv6NoteRegion
R15e0/0fe80:1::15R13 (local)MOSCOW
e0/1fe80:2::15R12 (local)
e0/2—R21 (Lamas)
e0/3fe80:3::15R20 (local)
R14e0/0fe80:4::14R12 (local)
e0/1fe80:5::14R13 (local)
e0/2—R22 (Kitorn)
e0/3fe80:6::14R19 (local)
R13e0/0fe80:8::13in SW5
e0/2fe80:1::13R15 (local)
e0/3fe80:5::13R14 (local)
R12e0/0fe80:7::12in SW4
e0/2fe80:4::12R14 (local)
e0/3fe80:2::12R15 (local)
R19e0/0fe80:6::19R14 (local)
R20e0/0fe80:3::20R15 (local)
DevicePortIPv6NoteRegion
R18e0/0fe80:12::18R16 (local)St. Petersburg
e0/1fe80:11::18R17 (local)
e0/2—R24 (Triada)
e0/3—R26 (Triada)
R17e0/1fe80:11::17R18 (local)
e0/2fe80:13::17in SW9
R16e0/0fe80:15::16R32 (local)
e0/1fe80:12::16R18 (local)
e0/2fe80:14::16in SW10
R32e0/0fe80:15::32R16 (local)
DevicePortIPv6NoteRegion
R27e0/0—R25 (Triada)Labytnangi
DevicePortIPv6NoteRegion
R28e0/0—R26 (Triada)Chukordah
e0/1—R25 (Triada)
e0/2fe80:21::28SW29
