Network Engineer — 01. VLAN

Lab: Configuring Extended VLAN, VTP and DTP

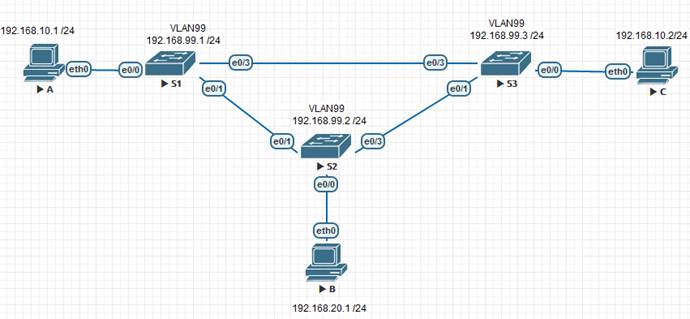

Topology

Addressing table

Device	Interface	IP address	Subnet Mask
S1	VLAN 99	192.168.99.1	255.255.255.0
S2	VLAN 99	192.168.99.2	255.255.255.0
S3	VLAN 99	192.168.99.3	255.255.255.0
PC-A	NIC	192.168.10.1	255.255.255.0
PC-B	NIC	192.168.20.1	255.255.255.0
PC-C	NIC	192.168.10.2	255.255.255.0

Goals

Configure VTP, DTP and trunk links between switches
S2 acts as VTP server; S1 and S3 as clients
Add VLANs and assign ports
Configure extended-range VLANs on S1 in VTP transparent mode

Part 1 — Basic device setup

Build the network according to the topology.


Enable
Configure terminal
interface vlan 1
ip address 192.168.1.1 255.255.255.0
no shutdown
exit
hostname S1
do copy run start
end
copy running-config startup-config


Enable
Configure terminal
interface vlan 1
ip address 192.168.1.2 255.255.255.0
no shutdown
exit
hostname S2
do copy run start
end
copy running-config startup-config


Enable
Configure terminal
interface vlan 1
ip address 192.168.1.3 255.255.255.0
no shutdown
exit
hostname S3
do copy run start
end
copy running-config startup-config

Disable DNS lookup on each switch:

no ip domain-lookup

Set privileged and console passwords, enable logging synchronous:

S1, S2, S3


enable
configure terminal
no ip domain-lookup
enable secret cisco
line console 0
password cisco
login
logging synchronous
end
copy running-config startup-config

Set a login banner:

S1, S2, S3


enable
configure terminal
Banner motd "**This is a secure system. Authorized Access Only!
end
copy running-config startup-config

Part 2 — VTP configuration

S1 (client)


enable
configure terminal
vtp domain CCNA
vtp password cisco
vtp version 3
vtp mode client
end
copy running-config startup-config

S2 (server)


enable
configure terminal
vtp domain CCNA
vtp password cisco
vtp version 3
vtp mode server
end
vtp primary server force
end
copy running-config startup-config

S3 (client)


enable
configure terminal
vtp domain CCNA
vtp password cisco
vtp version 3
vtp mode client
end
copy running-config startup-config

Part 3 — DTP and trunk ports

Dynamic trunk: S1 — S2

Set S1’s port toward S2 to dynamic desirable. S2 defaults to dynamic auto — the trunk forms automatically:


enable
configure terminal
interface Ethernet 0/1
switchport trunk encapsulation dot1q
switchport mode dynamic desirable
end
copy running-config startup-config

Static trunks: S1 — S3 and S2 — S3


enable
configure terminal
interface Ethernet 0/3
switchport trunk encapsulation dot1q
switchport mode trunk
end
copy running-config startup-config


enable
configure terminal
interface Ethernet 0/3
switchport trunk encapsulation dot1q
switchport mode trunk
end
copy running-config startup-config


enable
configure terminal
interface Ethernet 0/1
switchport trunk encapsulation dot1q
switchport mode trunk
interface Ethernet 0/3
switchport trunk encapsulation dot1q
switchport mode trunk
end
copy running-config startup-config

Verify trunks on S1:

show interfaces trunk

S1 output


enable
configure terminal
Port        Mode             Encapsulation  Status        Native vlan
Et0/1       desirable        802.1q         trunking      1
Et0/3       on               802.1q         trunking      1
end
copy running-config startup-config

Part 4 — Create VLANs on the server


enable
configure terminal
vlan 10
name Red
vlan 20
name Blue
vlan 30
name Yellow
vlan 99
name Management
end
copy running-config startup-config

Verify VLANs propagated to clients:

S1 — show vlan brief


enable
configure terminal
VLAN Name                             Status    Ports
---- -------------------------------- --------- -------------------------------
1    default                          active    Et0/2
10   Red                              active
20   Blue                             active
30   Yellow                           active
99   Management                       active
end
copy running-config startup-config

S3 — show vlan brief


enable
configure terminal
VLAN Name                             Status    Ports
---- -------------------------------- --------- -------------------------------
1    default                          active    Et0/2
10   Red                              active
20   Blue                             active
30   Yellow                           active
99   Management                       active
end
copy running-config startup-config

Part 5 — Assign ports to VLANs

Assign access ports and configure the Management SVI on all switches.

Switch	Interface	VLAN	Host
S1	Et0/0	10	PC-A
S2	Et0/0	20	PC-B
S3	Et0/0	10	PC-C


enable
configure terminal
interface Ethernet 0/0
switchport mode access
switchport access vlan 10
interface vlan 99
ip address 192.168.99.1 255.255.255.0
no shutdown
end
copy running-config startup-config


enable
configure terminal
interface Ethernet 0/0
switchport mode access
switchport access vlan 20
interface vlan 99
ip address 192.168.99.2 255.255.255.0
no shutdown
end
copy running-config startup-config


enable
configure terminal
interface Ethernet 0/0
switchport mode access
switchport access vlan 10
interface vlan 99
ip address 192.168.99.3 255.255.255.0
no shutdown
end
copy running-config startup-config

Part 6 — Connectivity check

PC-A and PC-C are both in VLAN 10 — verify reachability:

PC-A


VPCS> ping 192.168.10.2
84 bytes from 192.168.10.2 icmp_seq=1 ttl=64 time=0.506 ms
84 bytes from 192.168.10.2 icmp_seq=2 ttl=64 time=0.802 ms
84 bytes from 192.168.10.2 icmp_seq=3 ttl=64 time=0.513 ms
84 bytes from 192.168.10.2 icmp_seq=4 ttl=64 time=0.761 ms
84 bytes from 192.168.10.2 icmp_seq=5 ttl=64 time=0.880 ms

Verify Management VLAN reachability from S2:


enable
configure terminal
S2(config-if)#do ping 192.168.99.1
Sending 5, 100-byte ICMP Echos to 192.168.99.1, timeout is 2 seconds:
.!!!!
Success rate is 80 percent (4/5), round-trip min/avg/max = 1/1/1 ms
S2(config-if)#do ping 192.168.99.2
Sending 5, 100-byte ICMP Echos to 192.168.99.2, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 4/4/4 ms
S2(config-if)#do ping 192.168.99.3
Sending 5, 100-byte ICMP Echos to 192.168.99.3, timeout is 2 seconds:
.!!!!
Success rate is 80 percent (4/5), round-trip min/avg/max = 1/1/1 ms

Part 7 — Extended VLAN

Extended-range VLANs (1025–4096) cannot be managed via VTP — the switch must be in transparent mode first.

Switch S1 to VTP transparent:


enable
configure terminal
vtp mode transparent
end
copy running-config startup-config

Verify:

show vtp status

S1 output


enable
configure terminal
VTP Version capable             : 1 to 3
VTP version running             : 1
VTP Domain Name                 : CCNA
VTP Pruning Mode                : Disabled
VTP Traps Generation            : Disabled
Feature VLAN:
--------------
VTP Operating Mode                : Transparent
Maximum VLANs supported locally   : 255
Number of existing VLANs          : 9
Configuration Revision            : 0
end
copy running-config startup-config

Create extended VLAN 2000:


enable
configure terminal
vlan 2000
end

Verify:

show vlan brief

S1 output


enable
configure terminal
VLAN Name                             Status    Ports
---- -------------------------------- --------- -------------------------------
1    default                          active    Et0/2
10   Red                              active    Et0/0
20   Blue                             active
30   Yellow                           active
99   Management                       active
1002 fddi-default                     act/unsup
1003 trcrf-default                    act/unsup
1004 fddinet-default                  act/unsup
1005 trbrf-default                    act/unsup
2000 VLAN2000                         active
end
copy running-config startup-config

Network Engineer Course | Lab 01
