Network Architect — 09. Project: CP Migration from Multicast to EVPN

2026-02-14 Networking VxLAN EVPN Multicast DC Design OTUS

VxLAN: Control Plane Migration from Multicast to EVPN

Goal: Design a migration plan from CP Multicast to EVPN.

Lab plan:

  1. Configure the network topology for VxLAN CP Multicast.
  2. Provide a migration plan to EVPN.
  3. Configure the network topology for VxLAN Multipod.

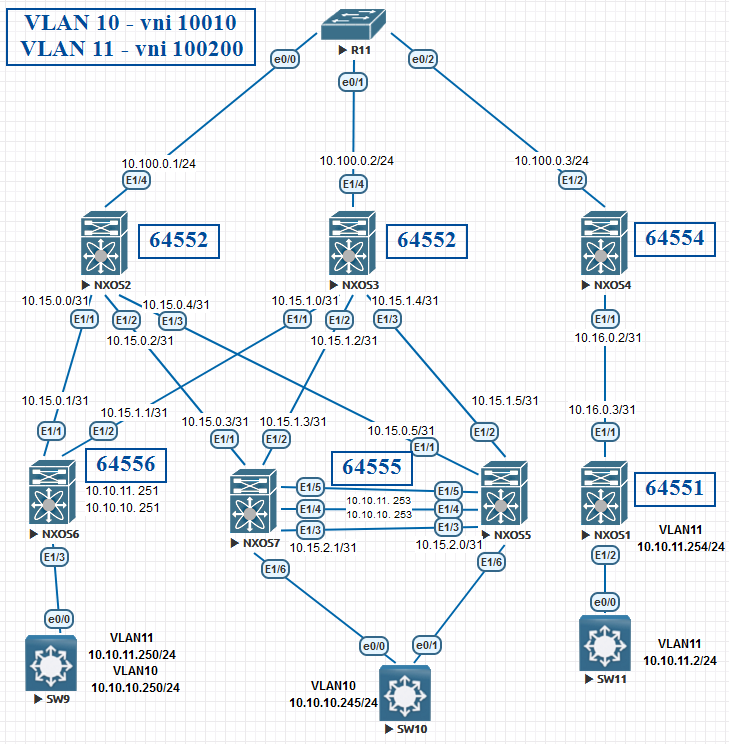

Scheme

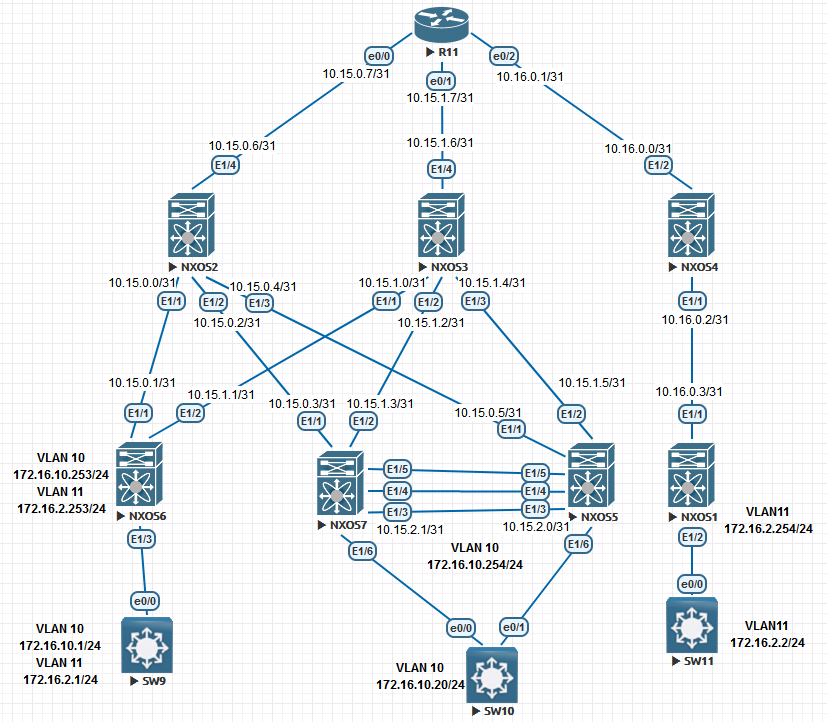

Configure VxLAN CP Multicast Topology

Description:

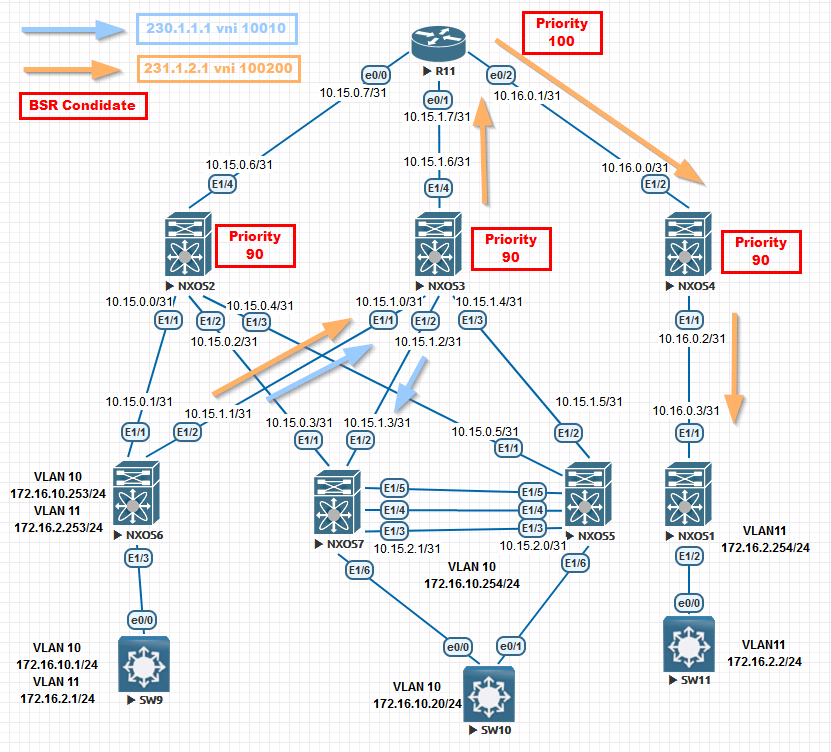

VxLAN configured via multicast: VNI reachability information is distributed via multicast in sparse mode. Key decisions: who acts as RP (and how that information is distributed), multicast IP addressing (to avoid duplicate MAC propagation across the network), and so on.

What did not work:

Only L2 connectivity could be configured for this topology. Attempting L3 produced the following error:

TRM not supported on this platform

BFD is also not supported in the images — the commands exist but the actual packets are not sent.

Configuration:

NXOS1

configure terminal
!
hostname NX1
!
feature bgp
feature pim
feature interface-vlan
feature vn-segment-vlan-based
feature nv overlay
!
no ip domain-lookup
!
fabric forwarding anycast-gateway-mac 0001.0001.0001
!
ip pim log-neighbor-changes
ip pim ssm range 232.0.0.0/8
ip pim bsr listen
vlan 1,11
vlan 11
  vn-segment 100200
!
ip prefix-list LOOPBACK seq 5 permit 1.1.1.1/32
ip prefix-list LOOPBACK seq 10 permit 10.1.1.1/32
ip prefix-list P2P seq 5 permit 10.16.0.2/31
ip prefix-list P2P seq 10 permit 172.16.2.0/31
route-map BGP-OUT permit 10
  match ip address prefix-list LOOPBACK P2P
!
interface Vlan11
  no shutdown
  ip address 172.16.2.254/24
  ip pim sparse-mode
  fabric forwarding mode anycast-gateway
!
interface nve1
  no shutdown
  source-interface loopback0
  member vni 100200 mcast-group 231.1.2.1
!
interface Ethernet1/1
  no switchport
  ip address 10.16.0.3/31
  ip pim sparse-mode
  no shutdown
!
interface Ethernet1/2
  switchport mode trunk
!
interface loopback0
  ip address 1.1.1.1/32
  ip address 10.1.1.1/32 secondary
  ip pim sparse-mode
!
cli alias name wr copy running-config startup-config
line console
  exec-timeout 0
line vty
  exec-timeout 0
!
boot nxos bootflash:/nxos.9.2.2.bin
!
router bgp 64551
  router-id 1.1.1.1
  bestpath as-path multipath-relax
  address-family ipv4 unicast
    redistribute direct route-map BGP-OUT
    maximum-paths 4
  template peer NXOS4
    remote-as 64554
    log-neighbor-changes
    password 3 9125d59c18a9b015
    address-family ipv4 unicast
  neighbor 10.16.0.2
    inherit peer NXOS4
!
end
wr
NXOS2

configure terminal
hostname NX2
!
feature bgp
feature pim
!
ip pim bsr bsr-candidate loopback1 priority 90
ip pim bsr rp-candidate loopback1 group-list 224.0.0.0/4 priority 90
ip pim log-neighbor-changes
ip pim ssm range 232.0.0.0/8
ip pim bsr forward listen
!
ip prefix-list LOOPBACK seq 5 permit 1.1.1.2/32
ip prefix-list LOOPBACK seq 10 permit 10.12.10.1/32
ip prefix-list P2P seq 5 permit 10.15.0.0/31
ip prefix-list P2P seq 10 permit 10.15.0.2/31
ip prefix-list P2P seq 15 permit 10.15.0.4/31
ip prefix-list P2P seq 20 permit 10.15.0.6/31
route-map BGP-OUT permit 10
  match ip address prefix-list LOOPBACK P2P
!
interface Ethernet1/1
  no switchport
  ip address 10.15.0.0/31
  ip pim sparse-mode
  no shutdown
!
interface Ethernet1/2
  no switchport
  ip address 10.15.0.2/31
  ip pim sparse-mode
  no shutdown
!
interface Ethernet1/3
  no switchport
  ip address 10.15.0.4/31
  ip pim sparse-mode
  no shutdown
!
interface Ethernet1/4
  no switchport
  ip address 10.15.0.6/31
  ip pim sparse-mode
  no shutdown
!
interface loopback0
  ip address 1.1.1.2/32
  ip pim sparse-mode
!
interface loopback1
  ip address 10.12.10.1/32
  ip pim sparse-mode
!
cli alias name wr copy running-config startup-config
line console
  exec-timeout 0
line vty
  exec-timeout 0
!
boot nxos bootflash:/nxos.9.2.2.bin
!
router bgp 64552
  router-id 1.1.1.2
  bestpath as-path multipath-relax
  address-family ipv4 unicast
    redistribute direct route-map BGP-OUT
    maximum-paths 4
!
  template peer LEAF_VPC
    remote-as 64555
    log-neighbor-changes
    password 3 9125d59c18a9b015
    address-family ipv4 unicast
!
  template peer NXOS6
    remote-as 64556
    log-neighbor-changes
    password 3 9125d59c18a9b015
    address-family ipv4 unicast
!
  template peer R11
    remote-as 64777
    log-neighbor-changes
    password 3 9125d59c18a9b015
    address-family ipv4 unicast
!
  neighbor 10.15.0.1
    inherit peer NXOS6
  neighbor 10.15.0.3
    inherit peer LEAF_VPC
  neighbor 10.15.0.5
    inherit peer LEAF_VPC
  neighbor 10.15.0.7
    inherit peer R11
end
wr
NXOS3

configure terminal
hostname NX3
!
nv overlay evpn
feature bgp
feature pim
feature nv overlay
!
no ip domain-lookup
!
ip pim bsr bsr-candidate loopback0 priority 90
ip pim bsr rp-candidate loopback0 group-list 224.0.0.0/4 priority 90
ip pim log-neighbor-changes
ip pim ssm range 232.0.0.0/8
ip pim bsr forward listen
!
ip prefix-list LOOPBACK seq 5 permit 1.1.1.3/32
ip prefix-list P2P permit 10.15.1.0/31
ip prefix-list P2P permit 10.15.1.2/31
ip prefix-list P2P permit 10.15.1.4/31
ip prefix-list P2P permit 10.15.1.6/31
route-map BGP-OUT permit 10
  match ip address prefix-list LOOPBACK P2P
!
interface Ethernet1/1
  no switchport
  ip address 10.15.1.0/31
  ip pim sparse-mode
  no shutdown
!
interface Ethernet1/2
  no switchport
  ip address 10.15.1.2/31
  ip pim sparse-mode
  no shutdown
!
interface Ethernet1/3
  no switchport
  ip address 10.15.1.4/31
  ip pim sparse-mode
  no shutdown
!
interface Ethernet1/4
  no switchport
  ip address 10.15.1.6/31
  ip pim sparse-mode
  no shutdown
!
interface loopback0
  ip address 1.1.1.3/32
  ip pim sparse-mode
!
cli alias name wr copy running-config startup-config
line console
  exec-timeout 0
line vty
  exec-timeout 0
!
router bgp 64552
  router-id 1.1.1.3
  bestpath as-path multipath-relax
  address-family ipv4 unicast
    redistribute direct route-map BGP-OUT
    maximum-paths 4
!
  template peer LEAF_VPC
    remote-as 64555
    log-neighbor-changes
    password 3 9125d59c18a9b015
    address-family ipv4 unicast
!
  template peer NXOS6
    remote-as 64556
    log-neighbor-changes
    password 3 9125d59c18a9b015
    address-family ipv4 unicast
!
  template peer R11
    remote-as 64777
    log-neighbor-changes
    password 3 9125d59c18a9b015
    address-family ipv4 unicast
!
  neighbor 10.15.1.1
    inherit peer NXOS6
  neighbor 10.15.1.3
    inherit peer LEAF_VPC
  neighbor 10.15.1.5
    inherit peer LEAF_VPC
  neighbor 10.15.1.7
    inherit peer R11
end
wr
NXOS4

configure terminal
hostname NX4
!
feature bgp
feature pim
!
ip pim bsr bsr-candidate loopback0 priority 90
ip pim bsr rp-candidate loopback0 group-list 224.0.0.0/4 priority 90
ip pim log-neighbor-changes
ip pim ssm range 232.0.0.0/8
ip pim bsr forward listen
!
ip prefix-list LOOPBACK seq 5 permit 1.1.1.4/32
ip prefix-list P2P seq 5 permit 10.16.0.2/31
ip prefix-list P2P seq 10 permit 10.16.0.0/31
route-map BGP-OUT permit 10
  match ip address prefix-list LOOPBACK P2P
!
interface Ethernet1/1
  no switchport
  ip address 10.16.0.2/31
  ip pim sparse-mode
  no shutdown
!
interface Ethernet1/2
  no switchport
  ip address 10.16.0.0/31
  ip pim sparse-mode
  no shutdown
!
interface loopback0
  ip address 1.1.1.4/32
  ip pim sparse-mode
!
cli alias name wr copy running-config startup-config
line console
  exec-timeout 0
line vty
  exec-timeout 0
!
router bgp 64554
  router-id 1.1.1.4
  bestpath as-path multipath-relax
  address-family ipv4 unicast
    redistribute direct route-map BGP-OUT
    maximum-paths 4
!
  template peer NXOS1
    remote-as 64551
    log-neighbor-changes
    password 3 9125d59c18a9b015
    address-family ipv4 unicast
  template peer R11
    remote-as 64777
    log-neighbor-changes
    password 3 9125d59c18a9b015
    address-family ipv4 unicast
  neighbor 10.16.0.1
    inherit peer R11
  neighbor 10.16.0.3
    inherit peer NXOS1
!
end
wr
NXOS5

configure terminal
hostname NX5
!
cfs eth distribute
nv overlay evpn
feature bgp
feature pim
feature interface-vlan
feature vn-segment-vlan-based
feature lacp
feature vpc
feature nv overlay
!
fabric forwarding anycast-gateway-mac 0001.0001.0001
ip pim log-neighbor-changes
ip pim ssm range 232.0.0.0/8
ip pim bsr listen
vlan 1,10
vlan 10
  vn-segment 10010
!
ip prefix-list LOOPBACK seq 5 permit 1.1.1.5/32
ip prefix-list LOOPBACK seq 10 permit 10.1.1.5/32
ip prefix-list P2P seq 5 permit 10.15.0.4/31
ip prefix-list P2P seq 10 permit 10.15.1.4/31
ip prefix-list P2P seq 15 permit 10.15.2.0/31
!
vrf context VPC
vpc domain 1
  peer-keepalive destination 10.15.2.0 source 10.15.2.1 vrf VPC
!
interface Vlan10
  no shutdown
  ip address 172.16.10.254/24
  ip pim sparse-mode
  fabric forwarding mode anycast-gateway
!
interface port-channel1
  switchport mode trunk
  spanning-tree port type network
  vpc peer-link
!
interface port-channel2
  switchport mode trunk
  vpc 1
!
interface nve1
  no shutdown
  source-interface loopback0
  member vni 10010 mcast-group 230.1.1.1
!
interface Ethernet1/1
  no switchport
  ip address 10.15.0.5/31
  ip pim sparse-mode
  no shutdown
!
interface Ethernet1/2
  no switchport
  ip address 10.15.1.5/31
  ip pim sparse-mode
  no shutdown
!
interface Ethernet1/3
  no switchport
  vrf member VPC
  ip address 10.15.2.1/31
  no shutdown
!
interface Ethernet1/4
  switchport mode trunk
  channel-group 1 mode active
!
interface Ethernet1/5
  switchport mode trunk
  channel-group 1 mode active
!
interface Ethernet1/6
  switchport mode trunk
  spanning-tree bpdufilter enable
  channel-group 2 mode active
!
interface loopback0
  ip address 1.1.1.5/32
  ip address 10.1.1.5/32 secondary
  ip pim sparse-mode
!
cli alias name wr copy running-config startup-config
line console
  exec-timeout 0
line vty
  exec-timeout 0
!
router bgp 64555
  router-id 1.1.1.5
  bestpath as-path multipath-relax
  address-family ipv4 unicast
    redistribute direct route-map BGP-OUT
    maximum-paths 4
!
  template peer SPINE
    remote-as 64552
    log-neighbor-changes
    password 3 9125d59c18a9b015
    address-family ipv4 unicast
!
  neighbor 10.15.0.4
    inherit peer SPINE
  neighbor 10.15.1.4
    inherit peer SPINE
end
wr
NXOS6

configure terminal
hostname NX6
!
feature bgp
feature pim
feature interface-vlan
feature vn-segment-vlan-based
feature nv overlay
!
ip pim log-neighbor-changes
ip pim ssm range 232.0.0.0/8
ip pim bsr listen
!
fabric forwarding anycast-gateway-mac 0001.0001.0001
!
vlan 1,10-11
vlan 10
  vn-segment 10010
vlan 11
  vn-segment 100200
!
ip prefix-list LOOPBACK seq 5 permit 1.1.1.6/32
ip prefix-list LOOPBACK seq 10 permit 10.1.1.6/32
ip prefix-list P2P seq 5 permit 10.15.0.0/31
!
route-map BGP-OUT permit 10
  match ip address prefix-list LOOPBACK P2P
!
interface Vlan10
  no shutdown
  ip address 172.16.10.253/24
  ip pim sparse-mode
  fabric forwarding mode anycast-gateway
!
interface Vlan11
  no shutdown
  ip address 172.16.2.253/24
  ip pim sparse-mode
  fabric forwarding mode anycast-gateway
!
interface nve1
  no shutdown
  source-interface loopback0
  member vni 10010 mcast-group 230.1.1.1
  member vni 100200 mcast-group 231.1.2.1
!
interface Ethernet1/1
  no switchport
  ip address 10.15.0.1/31
  ip pim sparse-mode
  no shutdown
!
interface Ethernet1/2
  no switchport
  ip address 10.15.1.1/31
  ip pim sparse-mode
  no shutdown
!
interface Ethernet1/3
  switchport mode trunk
!
interface loopback0
  ip address 1.1.1.6/32
  ip address 10.1.1.6/32 secondary
  ip pim sparse-mode
!
cli alias name wr copy running-config startup-config
line console
  exec-timeout 0
line vty
  exec-timeout 0
!
boot nxos bootflash:/nxos.9.2.2.bin
router bgp 64556
  router-id 1.1.1.6
  bestpath as-path multipath-relax
  address-family ipv4 unicast
    redistribute direct route-map BGP-OUT
    maximum-paths 4
!
  template peer SPINE
    remote-as 64552
    log-neighbor-changes
    password 3 9125d59c18a9b015
    address-family ipv4 unicast
!
  neighbor 10.15.0.0
    inherit peer SPINE
  neighbor 10.15.1.0
    inherit peer SPINE
end
wr
NXOS7

configure terminal
hostname NX7
!
cfs eth distribute
nv overlay evpn
feature bgp
feature pim
feature interface-vlan
feature vn-segment-vlan-based
feature lacp
feature vpc
feature nv overlay
!
fabric forwarding anycast-gateway-mac 0001.0001.0001
ip pim log-neighbor-changes
ip pim ssm range 232.0.0.0/8
ip pim bsr listen
vlan 1,10
vlan 10
  vn-segment 10010
!
ip prefix-list LOOPBACK seq 5 permit 1.1.1.7/32
ip prefix-list LOOPBACK seq 10 permit 10.1.1.5/32
ip prefix-list P2P seq 5 permit 10.15.0.2/31
route-map BGP-OUT permit 10
  match ip address prefix-list LOOPBACK P2P
!
vrf context VPC
vpc domain 1
  peer-keepalive destination 10.15.2.1 source 10.15.2.0 vrf VPC
!
interface Vlan10
  no shutdown
  ip address 172.16.10.254/24
  ip pim sparse-mode
  fabric forwarding mode anycast-gateway
!
interface port-channel1
  switchport mode trunk
  spanning-tree port type network
  vpc peer-link
!
interface port-channel2
  switchport mode trunk
  vpc 1
!
interface nve1
  no shutdown
  source-interface loopback0
  member vni 10010 mcast-group 230.1.1.1
!
interface Ethernet1/1
  no switchport
  ip address 10.15.0.3/31
  ip pim sparse-mode
  no shutdown
!
interface Ethernet1/2
  no switchport
  ip address 10.15.1.3/31
  ip pim sparse-mode
  no shutdown
!
interface Ethernet1/3
  no switchport
  vrf member VPC
  ip address 10.15.2.0/31
  no shutdown
!
interface Ethernet1/4
  switchport mode trunk
  channel-group 1 mode active
!
interface Ethernet1/5
  switchport mode trunk
  channel-group 1 mode active
!
interface Ethernet1/6
  switchport mode trunk
  spanning-tree bpdufilter enable
  channel-group 2 mode active
!
interface loopback0
  ip address 1.1.1.7/32
  ip address 10.1.1.5/32 secondary
  ip pim sparse-mode
!
cli alias name wr copy running-config startup-config
line console
  exec-timeout 0
line vty
  exec-timeout 0
!
router bgp 64555
  router-id 1.1.1.7
  bestpath as-path multipath-relax
  address-family ipv4 unicast
    redistribute direct route-map BGP-OUT
    maximum-paths 4
!
  template peer SPINE
    remote-as 64552
    password 3 9125d59c18a9b015
    address-family ipv4 unicast
  neighbor 10.15.0.2
    inherit peer SPINE
  neighbor 10.15.1.2
    inherit peer SPINE
end
wr
R11

enable
configure terminal
!
hostname R11
!
no ip domain lookup
ip multicast-routing
!
interface Loopback0
 ip address 1.1.1.11 255.255.255.255
 ip pim sparse-mode
!
interface Ethernet0/0
 ip address 10.15.0.7 255.255.255.254
 ip pim sparse-mode
!
interface Ethernet0/1
 ip address 10.15.1.7 255.255.255.254
 ip pim sparse-mode
!
interface Ethernet0/2
 ip address 10.16.0.1 255.255.255.254
 ip pim sparse-mode
!
router bgp 64777
 template peer-session NXOS2
  remote-as 64552
  password 7 070C285F4D06
 exit-peer-session
 !
 template peer-session NXOS3
  remote-as 64552
  password 7 1511021F0725
 exit-peer-session
 !
 template peer-session NXOS4
  remote-as 64554
  password 7 1511021F0725
 exit-peer-session
 !
 bgp log-neighbor-changes
 no bgp default ipv4-unicast
 neighbor 10.15.0.6 inherit peer-session NXOS2
 neighbor 10.15.1.6 inherit peer-session NXOS3
 neighbor 10.16.0.0 inherit peer-session NXOS4
 !
 address-family ipv4
  redistribute connected route-map BGP-OUT
  neighbor 10.15.0.6 activate
  neighbor 10.15.1.6 activate
  neighbor 10.16.0.0 activate
  maximum-paths 4
 exit-address-family
!
ip pim bsr-candidate Loopback0 32 100
ip pim rp-candidate Loopback0 priority 100
!
ip prefix-list LOOPBACK seq 5 permit 1.1.1.11/32
!
ip prefix-list P2P seq 5 permit 10.15.0.6/31
ip prefix-list P2P seq 10 permit 10.15.1.6/31
ip prefix-list P2P seq 15 permit 10.16.0.0/31
!
route-map BGP-OUT permit 10
 match ip address prefix-list LOOPBACK P2P
!
line con 0
 exec-timeout 0 0
!
end
wr

Настройка Switch:

SW9

enable
configure terminal
!
hostname SW9
!
interface Ethernet0/0
 switchport trunk encapsulation dot1q
 switchport mode trunk
 spanning-tree bpdufilter enable
!
interface Vlan10
 ip address 172.16.10.1 255.255.255.0
!
interface Vlan11
 ip address 172.16.2.2 255.255.255.0
!
end
wr
SW10

enable
configure terminal
!
hostname SW10
!
interface Port-channel1
 switchport trunk encapsulation dot1q
 switchport mode trunk
 spanning-tree bpdufilter enable
!
interface Ethernet0/0
 switchport trunk encapsulation dot1q
 switchport mode trunk
 channel-group 1 mode active
 spanning-tree bpdufilter enable
!
interface Ethernet0/1
 switchport trunk encapsulation dot1q
 switchport mode trunk
 channel-group 1 mode active
 spanning-tree bpdufilter enable
!
interface Vlan10
 ip address 172.16.10.20 255.255.255.0
!
end
wr
SW11

enable
configure terminal
!
hostname SW11
!
interface Ethernet0/0
 switchport trunk encapsulation dot1q
 switchport mode trunk
!
interface Vlan11
 ip address 172.16.2.1 255.255.255.0
!
end
wr
Showing 2 established NVE tunnels and device output:
NX1

NX1# show nve peers
Interface Peer-IP          State LearnType Uptime   Router-Mac
--------- ---------------  ----- --------- -------- -----------------
nve1      10.1.1.6         Up    DP        02:58:21 n/a
NX5-NX7(VPC пара)

NX5(config-if)# show nve peers
Interface Peer-IP          State LearnType Uptime   Router-Mac
--------- ---------------  ----- --------- -------- -----------------
nve1      10.1.1.6         Up    DP        06:01:34 n/a
NX6

NX6(config-if)# end
NX6# show nve peers
Interface Peer-IP          State LearnType Uptime   Router-Mac
--------- ---------------  ----- --------- -------- -----------------
nve1      10.1.1.1         Up    DP        02:56:01 n/a
nve1      10.1.1.5         Up    DP        03:32:54 n/a

To avoid cluttering the project with excessive output, here is a diagram showing the established path:

Scheme2

Multicast is now considered a legacy solution. The primary goal of this project is to migrate the network to EVPN.

Migration Plan to EVPN

  • AS numbers remain unchanged.
  • VNI numbers remain unchanged.
  • OSPF adjacency is brought up.
  • At this stage, test/unused reserve VLANs and VNIs are provisioned (e.g. vlan 1200–1205, vni 10020–10025); BGP neighbor templates are prepared.
  • All IPv4 unicast peering is removed and replaced with L2 EVPN.
  • VNI label distribution via BGP is explicitly configured on NVE1 interfaces.
  • Route-targets are explicitly set in EVPN for peering.
  • Configuration is prepared in advance for a smoother cutover.
  • A test run is conducted and monitored for one hour.
  • The PIM feature is disabled on all devices.

VxLAN Multipod Configuration

Scheme

NXOS1

configure terminal
hostname NX1
!
nv overlay evpn
feature ospf
feature bgp
feature interface-vlan
feature vn-segment-vlan-based
feature nv overlay
!
vlan 1,11,98
vlan 11
  vn-segment 100200
vlan 98
  vn-segment 9898
!
interface Vlan11
  no shutdown
  ip address 172.16.2.254/24
!
interface nve1
  no shutdown
  host-reachability protocol bgp
  source-interface loopback0
  member vni 100200
    ingress-replication protocol bgp
!
interface Ethernet1/1
  no switchport
  ip address 10.16.0.3/31
  ip ospf network point-to-point
  no ip ospf passive-interface
  ip router ospf 1 area 0.0.0.1
  no shutdown
!
interface Ethernet1/2
  switchport mode trunk
  spanning-tree bpdufilter enable
!
interface loopback0
  ip address 1.1.1.1/24
  ip address 10.255.255.253/32 secondary
  ip router ospf 1 area 0.0.0.1
!
cli alias name wr copy running-config startup-config
line console
  exec-timeout 0
line vty
  exec-timeout 0
!
router ospf 1
  router-id 1.1.1.1
  passive-interface default
!
router bgp 64551
  template peer SPINE
    update-source loopback0
    ebgp-multihop 5
    address-family l2vpn evpn
      send-community
      send-community extended
  neighbor 1.1.1.4
    inherit peer SPINE
    remote-as 64554
evpn
  vni 100200 l2
    route-target import auto
    route-target import 9898:100200
    route-target export auto
    route-target export 9898:100200
!
end
wr
NXOS2

configure terminal
hostname NX2
!
nv overlay evpn
feature ospf
feature bgp
feature nv overlay
!
route-map NH_UNCHANGED permit 10
  set ip next-hop unchanged
vrf context management
!
interface Ethernet1/1
  no switchport
  ip address 10.15.0.0/31
  ip ospf authentication-key 3 e7cddfe7d0564e2c
  ip ospf network point-to-point
  no ip ospf passive-interface
  ip router ospf 1 area 0.0.0.0
  no shutdown
!
interface Ethernet1/2
  no switchport
  ip address 10.15.0.2/31
  ip ospf authentication-key 3 e7cddfe7d0564e2c
  ip ospf network point-to-point
  no ip ospf passive-interface
  ip router ospf 1 area 0.0.0.0
  no shutdown
!
interface Ethernet1/3
  no switchport
  ip address 10.15.0.4/31
  ip ospf authentication-key 3 e7cddfe7d0564e2c
  ip ospf network point-to-point
  no ip ospf passive-interface
  ip router ospf 1 area 0.0.0.0
  no shutdown
!
interface Ethernet1/4
  no switchport
  ip address 172.25.20.1/24
  ip ospf authentication-key 3 e7cddfe7d0564e2c
  ip ospf network broadcast
  no ip ospf passive-interface
  ip router ospf 1 area 0.0.0.1
  no shutdown
!
interface loopback0
  ip address 1.1.1.2/24
  ip router ospf 1 area 0.0.0.0
!
cli alias name wr copy running-config startup-config
line console
  exec-timeout 0
line vty
  exec-timeout 0
!
router ospf 1
  router-id 1.1.1.2
  passive-interface default
!
router bgp 64552
  address-family l2vpn evpn
    retain route-target all
  template peer UNIVERSAL
    update-source loopback0
    address-family l2vpn evpn
      send-community
      send-community extended
      route-map NH_UNCHANGED out
  neighbor 1.1.1.4
    inherit peer UNIVERSAL
    remote-as 64554
  neighbor 1.1.1.5
    inherit peer UNIVERSAL
    remote-as 64555
  neighbor 1.1.1.6
    inherit peer UNIVERSAL
    remote-as 64556
  neighbor 1.1.1.7
    inherit peer UNIVERSAL
    remote-as 64555
!
end
wr
NXOS3

configure terminal
hostname NX3
!
nv overlay evpn
feature ospf
feature bgp
feature nv overlay
!
route-map NH_UNCHANGED permit 10
  set ip next-hop unchanged
!
interface Ethernet1/1
  no switchport
  ip address 10.15.1.0/31
  ip ospf authentication-key 3 e7cddfe7d0564e2c
  ip ospf network point-to-point
  no ip ospf passive-interface
  ip router ospf 1 area 0.0.0.0
  no shutdown
!
interface Ethernet1/2
  no switchport
  ip address 10.15.1.2/31
  ip ospf authentication-key 3 e7cddfe7d0564e2c
  ip ospf network point-to-point
  no ip ospf passive-interface
  ip router ospf 1 area 0.0.0.0
  no shutdown
!
interface Ethernet1/3
  no switchport
  ip address 10.15.1.4/31
  ip ospf authentication-key 3 e7cddfe7d0564e2c
  ip ospf network point-to-point
  no ip ospf passive-interface
  ip router ospf 1 area 0.0.0.0
  no shutdown
!
interface Ethernet1/4
  no switchport
  ip address 172.25.20.2/24
  ip ospf authentication-key 3 e7cddfe7d0564e2c
  ip ospf network broadcast
  no ip ospf passive-interface
  ip router ospf 1 area 0.0.0.1
  no shutdown
!
interface loopback0
  ip address 1.1.1.3/24
  ip router ospf 1 area 0.0.0.0
!
cli alias name wr copy running-config startup-config
line console
  exec-timeout 0
line vty
  exec-timeout 0
!
router ospf 1
  router-id 1.1.1.3
  passive-interface default
!
router bgp 64552
  address-family l2vpn evpn
    retain route-target all
  template peer UNIVERSAL
    update-source loopback0
    address-family l2vpn evpn
      send-community
      send-community extended
      route-map NH_UNCHANGED out
  neighbor 1.1.1.4
    inherit peer UNIVERSAL
    remote-as 64554
  neighbor 1.1.1.5
    inherit peer UNIVERSAL
    remote-as 64555
  neighbor 1.1.1.6
    inherit peer UNIVERSAL
    remote-as 64556
  neighbor 1.1.1.7
    inherit peer UNIVERSAL
    remote-as 64555
!
end
wr
NXOS4

configure terminal
hostname NX4
!
nv overlay evpn
feature ospf
feature bgp
feature nv overlay
!
route-map NH_UNCHANGED permit 10
  set ip next-hop unchanged
!
interface Ethernet1/1
  no switchport
  ip address 10.16.0.2/31
  ip ospf network point-to-point
  no ip ospf passive-interface
  ip router ospf 1 area 0.0.0.1
  no shutdown
!
interface Ethernet1/2
  no switchport
  ip address 172.25.20.3/24
  ip ospf authentication-key 3 e7cddfe7d0564e2c
  ip ospf network broadcast
  no ip ospf passive-interface
  ip router ospf 1 area 0.0.0.1
  no shutdown
!
interface loopback0
  ip address 1.1.1.4/24
  ip router ospf 1 area 0.0.0.1
!
cli alias name wr copy running-config startup-config
line console
  exec-timeout 0
line vty
  exec-timeout 0
no feature signature-verification
router ospf 1
  router-id 1.1.1.4
  passive-interface default
router bgp 64554
  address-family l2vpn evpn
    retain route-target all
  template peer UNIVERSAL
    update-source loopback0
    address-family l2vpn evpn
      send-community
      send-community extended
      route-map NH_UNCHANGED out
  neighbor 1.1.1.1
    inherit peer UNIVERSAL
    remote-as 64551
  neighbor 1.1.1.2
    inherit peer UNIVERSAL
    remote-as 64552
  neighbor 1.1.1.3
    inherit peer UNIVERSAL
    remote-as 64552
!
end
wr
NXOS5

configure terminal
hostname NX5
!
cfs eth distribute
nv overlay evpn
feature ospf
feature bgp
feature interface-vlan
feature vn-segment-vlan-based
feature lacp
feature vpc
feature nv overlay
!
fabric forwarding anycast-gateway-mac 0001.0001.0001
system vlan nve-overlay id 1
vlan 1,10,88
vlan 10
  vn-segment 10010
vlan 88
  vn-segment 9999
!
vrf context VPC
vpc domain 1
  peer-keepalive destination 10.15.2.0 source 10.15.2.1 vrf VPC
!
interface Vlan10
  no shutdown
  ip address 10.10.10.253/24
  fabric forwarding mode anycast-gateway
!
interface Vlan11
  no shutdown
  ip address 10.10.11.253/24
  fabric forwarding mode anycast-gateway
!
interface port-channel1
  switchport mode trunk
  spanning-tree port type network
  vpc peer-link
!
interface port-channel2
  switchport mode trunk
  vpc 1
!
interface nve1
  no shutdown
  host-reachability protocol bgp
  source-interface loopback0
  member vni 10010
    ingress-replication protocol bgp
!
interface Ethernet1/1
  no switchport
  ip address 10.15.0.5/31
  ip ospf authentication-key 3 e7cddfe7d0564e2c
  ip ospf network point-to-point
  no ip ospf passive-interface
  ip router ospf 1 area 0.0.0.0
  no shutdown
!
interface Ethernet1/2
  no switchport
  ip address 10.15.1.5/31
  ip ospf authentication-key 3 e7cddfe7d0564e2c
  ip ospf network point-to-point
  no ip ospf passive-interface
  ip router ospf 1 area 0.0.0.0
  no shutdown
!
interface Ethernet1/3
  no switchport
  vrf member VPC
  ip address 10.15.2.1/31
  no shutdown
!
interface Ethernet1/4
  switchport mode trunk
  channel-group 1 mode active
!
interface Ethernet1/5
  switchport mode trunk
  channel-group 1 mode active
!
interface Ethernet1/6
  switchport mode trunk
  spanning-tree bpdufilter enable
  channel-group 2 mode active
!
interface loopback0
  ip address 1.1.1.5/24
  ip address 10.255.255.255/32 secondary
  ip router ospf 1 area 0.0.0.0
!
cli alias name wr copy running-config startup-config
line console
  exec-timeout 0
line vty
  exec-timeout 0
!
router ospf 1
  router-id 1.1.1.5
  passive-interface default
!
router bgp 64555
  template peer SPINE
    remote-as 64552
    update-source loopback0
    ebgp-multihop 5
    address-family l2vpn evpn
      send-community
      send-community extended
  neighbor 1.1.1.2
    inherit peer SPINE
  neighbor 1.1.1.3
    inherit peer SPINE
evpn
  vni 10010 l2
    route-target import auto
    route-target import 9999:10010
    route-target export auto
    route-target export 9999:10010
!
end
wr
NXOS6

configure terminal
hostname NX6
!
nv overlay evpn
feature ospf
feature bgp
feature interface-vlan
feature vn-segment-vlan-based
feature nv overlay
!
fabric forwarding anycast-gateway-mac 0001.0001.0001
vlan 1,10-11,98-99
vlan 10
  vn-segment 10010
vlan 11
  vn-segment 100200
vlan 98
  vn-segment 9898
vlan 99
  vn-segment 9999
!
interface Vlan10
  no shutdown
  ip address 10.10.10.251/24
  fabric forwarding mode anycast-gateway
!
interface Vlan11
  no shutdown
  ip address 10.10.11.251/24
  fabric forwarding mode anycast-gateway
!
interface nve1
  no shutdown
  host-reachability protocol bgp
  source-interface loopback0
  member vni 10010
    ingress-replication protocol bgp
  member vni 100200
    ingress-replication protocol bgp
!
interface Ethernet1/1
  no switchport
  ip address 10.15.0.1/31
  ip ospf authentication-key 3 e7cddfe7d0564e2c
  ip ospf network point-to-point
  no ip ospf passive-interface
  ip router ospf 1 area 0.0.0.0
  no shutdown
!
interface Ethernet1/2
  no switchport
  ip address 10.15.1.1/31
  ip ospf authentication-key 3 e7cddfe7d0564e2c
  ip ospf network point-to-point
  no ip ospf passive-interface
  ip router ospf 1 area 0.0.0.0
  no shutdown
!
interface Ethernet1/3
  switchport mode trunk
  spanning-tree bpdufilter enable
!
interface loopback0
  ip address 1.1.1.6/24
  ip address 10.255.255.254/32 secondary
  ip router ospf 1 area 0.0.0.0
!
cli alias name wr copy running-config startup-config
line console
  exec-timeout 0
line vty
  exec-timeout 0
!
router ospf 1
  router-id 1.1.1.6
  passive-interface default
!
router bgp 64556
  template peer SPINE
    remote-as 64552
    update-source loopback0
    ebgp-multihop 5
    address-family l2vpn evpn
      send-community
      send-community extended
  neighbor 1.1.1.2
    inherit peer SPINE
  neighbor 1.1.1.3
    inherit peer SPINE
evpn
  vni 10010 l2
    route-target import auto
    route-target import 9999:10010
    route-target export auto
    route-target export 9999:10010
  vni 100200 l2
    route-target import auto
    route-target import 9898:100200
    route-target export auto
    route-target export 9898:100200
!
end
wr
NXOS7

configure terminal
hostname NX7
!
cfs eth distribute
nv overlay evpn
feature ospf
feature bgp
feature interface-vlan
feature vn-segment-vlan-based
feature lacp
feature vpc
feature nv overlay
!
fabric forwarding anycast-gateway-mac 0001.0001.0001
vlan 1,10,68,88
vlan 10
  vn-segment 10010
vlan 68
  vn-segment 10068
vlan 88
  vn-segment 9999
!
vrf context VPC
vrf context management
vpc domain 1
  peer-keepalive destination 10.15.2.1 source 10.15.2.0 vrf VPC
!
interface Vlan10
  no shutdown
  ip address 10.10.10.253/24
  fabric forwarding mode anycast-gateway
!
interface Vlan11
  no shutdown
  ip address 10.10.11.253/24
  fabric forwarding mode anycast-gateway
!
interface Vlan68
  no shutdown
  vrf member VXLAN_RT
  ip address 192.168.68.253/24
  fabric forwarding mode anycast-gateway
!
interface Vlan88
  no shutdown
  vrf member VXLAN_RT
  ip forward
!
interface port-channel1
  switchport mode trunk
  spanning-tree port type network
  vpc peer-link
!
interface port-channel2
  switchport mode trunk
  vpc 1
!
interface nve1
  no shutdown
  host-reachability protocol bgp
  source-interface loopback0
  member vni 10010
    ingress-replication protocol bgp
!
interface Ethernet1/1
  no switchport
  ip address 10.15.0.3/31
  ip ospf authentication-key 3 e7cddfe7d0564e2c
  ip ospf network point-to-point
  no ip ospf passive-interface
  ip router ospf 1 area 0.0.0.0
  no shutdown
!
interface Ethernet1/2
  no switchport
  ip address 10.15.1.3/31
  ip ospf authentication-key 3 e7cddfe7d0564e2c
  ip ospf network point-to-point
  no ip ospf passive-interface
  ip router ospf 1 area 0.0.0.0
  no shutdown
!
interface Ethernet1/3
  no switchport
  vrf member VPC
  ip address 10.15.2.0/31
  no shutdown
!
interface Ethernet1/4
  switchport mode trunk
  channel-group 1 mode active
!
interface Ethernet1/5
  switchport mode trunk
  channel-group 1 mode active
!
interface Ethernet1/6
  switchport mode trunk
  spanning-tree bpdufilter enable
  channel-group 2 mode active
!
interface loopback0
  ip address 1.1.1.7/24
  ip address 10.255.255.255/32 secondary
  ip router ospf 1 area 0.0.0.0
!
cli alias name wr copy running-config startup-config
line console
  exec-timeout 0
line vty
  exec-timeout 0
!
router ospf 1
  router-id 1.1.1.7
  passive-interface default
!
router bgp 64555
  template peer SPINE
    remote-as 64552
    update-source loopback0
    ebgp-multihop 5
    address-family l2vpn evpn
      send-community
      send-community extended
  neighbor 1.1.1.2
    inherit peer SPINE
  neighbor 1.1.1.3
    inherit peer SPINE
evpn
  vni 10010 l2
    route-target import auto
    route-target import 9999:10010
    route-target export auto
    route-target export 9999:10010
!
end
wr

Настройка Switch:

SW9

enable
configure terminal
!
hostname SW9
!
vlan 10,11
!
interface Ethernet0/0
 switchport trunk encapsulation dot1q
 switchport mode trunk
 spanning-tree bpdufilter enable
!
interface Ethernet0/1
 switchport access vlan 10
 spanning-tree bpdufilter enable
!
interface Ethernet0/2
 switchport access vlan 11
 spanning-tree bpdufilter enable
!
interface Ethernet0/3
 switchport access vlan 69
 spanning-tree bpdufilter enable
!
interface Vlan10
 ip address 10.10.10.250 255.255.255.0
!
interface Vlan11
 ip address 10.10.11.250 255.255.255.0
!
end
wr
SW10

enable
configure terminal
!
hostname SW10
!
interface Port-channel1
 switchport trunk encapsulation dot1q
 switchport mode trunk
 spanning-tree bpdufilter enable
!
interface Ethernet0/0
 switchport trunk encapsulation dot1q
 switchport mode trunk
 channel-group 1 mode active
 spanning-tree bpdufilter enable
!
interface Ethernet0/1
 switchport trunk encapsulation dot1q
 switchport mode trunk
 channel-group 1 mode active
 spanning-tree bpdufilter enable
!
interface Ethernet0/2
 switchport access vlan 10
!
interface Ethernet0/3
 switchport access vlan 11
!
interface Vlan10
 ip address 10.10.10.245 255.255.255.0
!
interface Vlan11
 ip address 10.10.11.245 255.255.255.0
!
end
wr
SW11

enable
configure terminal
!
hostname SW11
!
interface Ethernet0/0
 switchport trunk encapsulation dot1q
 switchport mode trunk
 spanning-tree bpdufilter enable
!
interface Ethernet0/3
 switchport access vlan 11
 spanning-tree bpdufilter enable
!
interface Vlan11
 ip address 10.10.11.250 255.255.255.0
!
end
wr
*Network Architect Course | Lab 09*
← Back to posts
