Multicast. PIM
Goal: Configure PIM in the network.
Lab objectives:
- Configure PIM on all devices (except access switches). Any dynamic routing protocol may be used for IP connectivity.
- Document the work plan, address space, network diagram, and configurations.
An optional extension: implement Multicast together with VxLAN (may be addressed later).

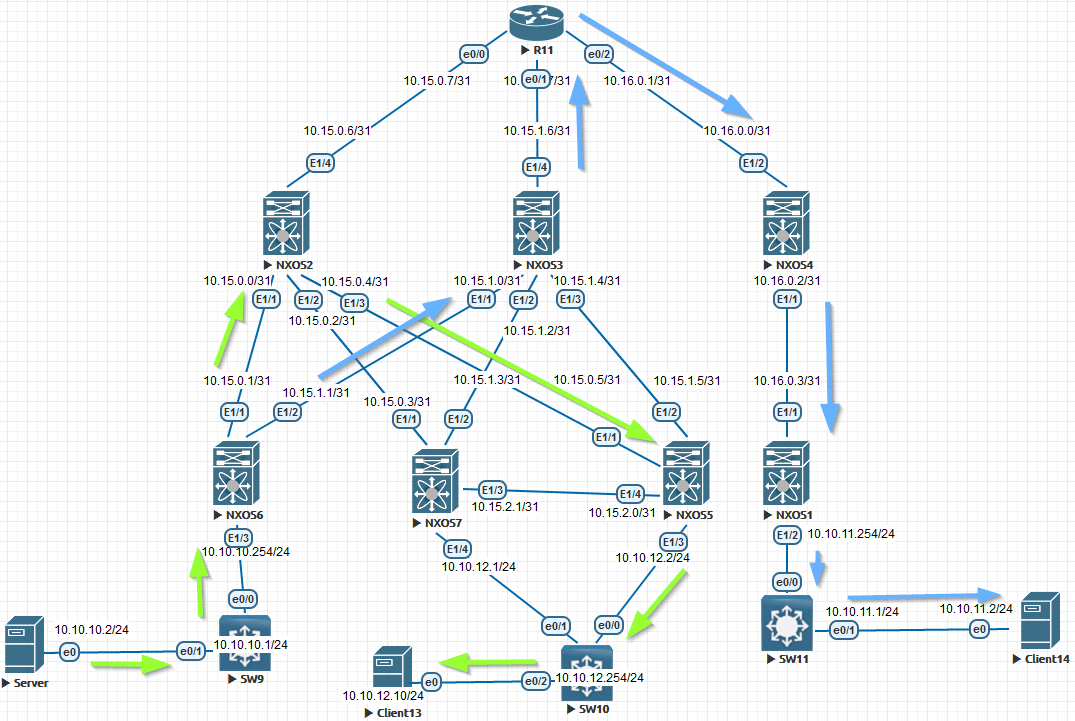

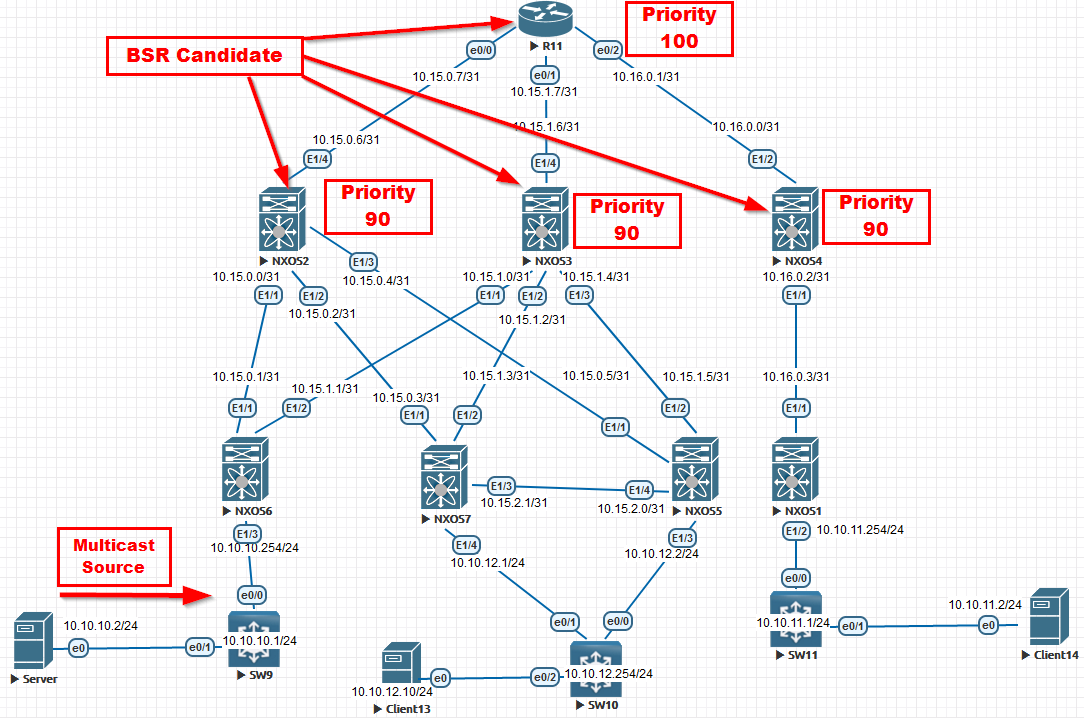

The topology is based on the OSPF lab, extended with multicast support.
Since EVE-NG runs without a GPU (console only), a custom QEMU image was built for multicast source/client roles. The multicast source uses the tstools package; clients use smcroute.
NEXUS configuration:
NXOS1
conf t
!
hostname NX1
feature ospf
feature pim
!
ip pim log-neighbor-changes
ip pim bsr listen
!
router ospf 1
router-id 1.1.1.1
passive-interface default
!
interface Ethernet1/1
no switchport
medium p2p
ip unnumbered loopback0
ip ospf authentication-key OTUS
ip ospf network point-to-point
no ip ospf passive-interface
ip router ospf 1 area 0.0.0.1
ip pim sparse-mode
no shutdown
!
interface Ethernet1/2
no switchport
ip address 10.10.11.254/24
ip ospf passive-interface
ip router ospf 1 area 0.0.0.1
ip pim sparse-mode
no shutdown
!
interface loopback0
ip address 1.1.1.1/24
ip router ospf 1 area 0.0.0.1
!
line console
exec-timeout 0
line vty
exec-timeout 0
!
end
copy run star
NXOS2
conf t
!
hostname NX2
feature ospf
feature pim
!
ip pim bsr bsr-candidate loopback0 priority 90
ip pim bsr rp-candidate loopback0 group-list 224.0.0.0/4 priority 90
ip pim log-neighbor-changes
ip pim ssm range 232.0.0.0/8
ip pim bsr forward listen
!
router ospf 1
router-id 1.1.1.2
passive-interface default
!
interface Ethernet1/1
no switchport
medium p2p
ip unnumbered loopback0
ip ospf authentication-key OTUS
ip ospf network point-to-point
no ip ospf passive-interface
ip router ospf 1 area 0.0.0.0
ip pim sparse-mode
no shutdown
!
interface Ethernet1/2
no switchport
medium p2p
ip unnumbered loopback0
ip ospf authentication-key OTUS
ip ospf network point-to-point
no ip ospf passive-interface
ip router ospf 1 area 0.0.0.0
ip pim sparse-mode
no shutdown
!
interface Ethernet1/3
no switchport
medium p2p
ip unnumbered loopback0
ip ospf authentication-key OTUS
ip ospf network point-to-point
no ip ospf passive-interface
ip router ospf 1 area 0.0.0.0
ip pim sparse-mode
no shutdown
!
interface Ethernet1/4
no switchport
ip address 10.15.0.6/31
ip ospf authentication-key OTUS
ip ospf network point-to-point
no ip ospf passive-interface
ip router ospf 1 area 0.0.0.0
ip pim sparse-mode
no shutdown
!
interface loopback0
ip address 1.1.1.2/24
ip router ospf 1 area 0.0.0.0
ip pim sparse-mode
!
line console
exec-timeout 0
line vty
exec-timeout 0
!
end
copy run star
NXOS3
conf t
!
hostname NX3
feature ospf
feature pim
!
ip pim bsr bsr-candidate loopback0 priority 90
ip pim bsr rp-candidate loopback0 group-list 224.0.0.0/4 priority 90
ip pim log-neighbor-changes
ip pim ssm range 232.0.0.0/8
ip pim bsr forward listen
!
router ospf 1
router-id 1.1.1.3
passive-interface default
!
interface Ethernet1/1
no switchport
medium p2p
ip unnumbered loopback0
ip ospf authentication-key OTUS
ip ospf network point-to-point
no ip ospf passive-interface
ip router ospf 1 area 0.0.0.0
ip pim sparse-mode
no shutdown
!
interface Ethernet1/2
no switchport
medium p2p
ip unnumbered loopback0
ip ospf authentication-key OTUS
ip ospf network point-to-point
no ip ospf passive-interface
ip router ospf 1 area 0.0.0.0
ip pim sparse-mode
no shutdown
!
interface Ethernet1/3
no switchport
medium p2p
ip unnumbered loopback0
ip ospf authentication-key OTUS
ip ospf network point-to-point
no ip ospf passive-interface
ip router ospf 1 area 0.0.0.0
ip pim sparse-mode
no shutdown
!
interface Ethernet1/4
no switchport
ip address 10.15.1.6/31
ip ospf authentication-key OTUS
ip ospf network point-to-point
no ip ospf passive-interface
ip router ospf 1 area 0.0.0.0
ip pim sparse-mode
no shutdown
!
interface loopback0
ip address 1.1.1.3/24
ip router ospf 1 area 0.0.0.0
ip pim sparse-mode
!
line console
exec-timeout 0
line vty
exec-timeout 0
!
end
copy run star
NXOS4
conf t
!
hostname NX4
feature ospf
feature pim
!
ip pim bsr bsr-candidate loopback0 priority 90
ip pim bsr rp-candidate loopback0 group-list 224.0.0.0/4 priority 90
ip pim log-neighbor-changes
ip pim ssm range 232.0.0.0/8
ip pim bsr forward listen
!
router ospf 1
router-id 1.1.1.4
passive-interface default
!
interface Ethernet1/1
no switchport
medium p2p
ip unnumbered loopback0
ip ospf authentication-key OTUS
ip ospf network point-to-point
no ip ospf passive-interface
ip router ospf 1 area 0.0.0.1
ip pim sparse-mode
no shutdown
!
interface Ethernet1/2
no switchport
ip address 10.16.0.0/31
ip ospf authentication-key OTUS
ip ospf network point-to-point
no ip ospf passive-interface
ip router ospf 1 area 0.0.0.1
ip pim sparse-mode
no shutdown
!
interface loopback0
ip address 1.1.1.4/24
ip router ospf 1 area 0.0.0.1
ip pim sparse-mode
!
line console
exec-timeout 0
line vty
exec-timeout 0
!
end
copy run star
NXOS5
conf t
!
feature ospf
feature pim
!
ip pim log-neighbor-changes
ip pim bsr listen
!
hostname NX5
!
router ospf 1
router-id 1.1.1.5
passive-interface default
!
interface Ethernet1/1
no switchport
medium p2p
ip unnumbered loopback0
ip ospf authentication-key OTUS
ip ospf network point-to-point
no ip ospf passive-interface
ip router ospf 1 area 0.0.0.0
ip pim sparse-mode
no shutdown
!
interface Ethernet1/2
no switchport
medium p2p
ip unnumbered loopback0
ip ospf authentication-key OTUS
ip ospf network point-to-point
no ip ospf passive-interface
ip router ospf 1 area 0.0.0.0
ip pim sparse-mode
no shutdown
!
interface Ethernet1/3
no switchport
ip address 10.10.12.2/24
ip router ospf 1 area 0.0.0.0
ip pim sparse-mode
ip pim dr-priority 1000
no shutdown
!
interface Ethernet1/4
no switchport
medium p2p
ip unnumbered loopback0
ip ospf authentication-key OTUS
ip ospf network point-to-point
no ip ospf passive-interface
ip router ospf 1 area 0.0.0.0
ip pim sparse-mode
no shutdown
!
interface loopback0
ip address 1.1.1.5/24
ip router ospf 1 area 0.0.0.0
!
line console
exec-timeout 0
line vty
exec-timeout 0
!
end
copy run star
NXOS6
conf t
!
feature ospf
feature pim
!
ip pim log-neighbor-changes
ip pim bsr listen
!
hostname NX6
!
router ospf 1
router-id 1.1.1.6
passive-interface default
!
interface Ethernet1/1
no switchport
medium p2p
ip unnumbered loopback0
ip ospf authentication-key OTUS
ip ospf network point-to-point
no ip ospf passive-interface
ip router ospf 1 area 0.0.0.0
ip pim sparse-mode
no shutdown
!
interface Ethernet1/2
no switchport
medium p2p
ip unnumbered loopback0
ip ospf authentication-key OTUS
ip ospf network point-to-point
no ip ospf passive-interface
ip router ospf 1 area 0.0.0.0
ip pim sparse-mode
no shutdown
!
interface Ethernet1/3
no switchport
ip address 10.10.10.254/24
ip router ospf 1 area 0.0.0.0
ip pim sparse-mode
no shutdown
!
interface loopback0
ip address 1.1.1.6/24
ip router ospf 1 area 0.0.0.0
!
line console
exec-timeout 0
line vty
exec-timeout 0
!
end
copy run star
NXOS7
conf t
!
hostname NX7
!
feature ospf
feature pim
!
ip pim log-neighbor-changes
ip pim bsr listen
!
router ospf 1
router-id 1.1.1.7
passive-interface default
!
interface Ethernet1/1
no switchport
medium p2p
ip unnumbered loopback0
ip ospf authentication-key OTUS
ip ospf network point-to-point
no ip ospf passive-interface
ip router ospf 1 area 0.0.0.0
ip pim sparse-mode
no shutdown
!
interface Ethernet1/2
no switchport
medium p2p
ip unnumbered loopback0
ip ospf authentication-key OTUS
ip ospf network point-to-point
no ip ospf passive-interface
ip router ospf 1 area 0.0.0.0
ip pim sparse-mode
no shutdown
!
interface Ethernet1/3
no switchport
medium p2p
ip unnumbered loopback0
ip ospf authentication-key OTUS
ip ospf network point-to-point
no ip ospf passive-interface
ip router ospf 1 area 0.0.0.0
ip pim sparse-mode
no shutdown
!
interface Ethernet1/4
no switchport
ip address 10.10.12.1/24
ip router ospf 1 area 0.0.0.0
ip pim sparse-mode
no shutdown
!
interface loopback0
ip address 1.1.1.7/24
ip router ospf 1 area 0.0.0.0
!
line console
exec-timeout 0
line vty
exec-timeout 0
!
end
copy run star
R11
enable
configure terminal
!
hostname R11
line con 0
exec-t 0 0
exit
no ip domain loo
!
router ospf 1
router-id 1.1.1.11
!
interface Ethernet0/0
ip address 10.15.0.7 255.255.255.254
ip pim sparse-mode
ip ospf authentication-key OTUS
ip ospf network point-to-point
ip ospf 1 area 0
duplex full
no shutdown
!
interface Ethernet0/1
ip address 10.15.1.7 255.255.255.254
ip pim sparse-mode
ip ospf authentication-key OTUS
ip ospf network point-to-point
ip ospf 1 area 0
duplex full
no shutdown
!
interface Ethernet0/2
ip address 10.16.0.1 255.255.255.254
ip pim sparse-mode
ip ospf authentication-key OTUS
ip ospf network point-to-point
ip ospf 1 area 1
duplex full
no shutdown
!
interface Loopback0
ip address 1.1.1.11 255.255.255.0
ip pim sparse-mode
ip ospf 1 area 0
!
ip multicast-routing
ip pim bsr-candidate Loopback0 32 100
ip pim rp-candidate Loopback0 priority 100
!
end
wr
Multicast source configuration
Server
cat /etc/network/interfaces/
auto ens3
iface ens3 inet static
address 10.10.10.2
netmask 255.255.255.0
gateway 10.10.10.1
tsplay ./video.ts 239.0.0.100:1234 -loop -i 10.10.10.2 &
Client13
cat /etc/network/interfaces/
auto ens3
iface ens3 inet static
address 10.10.12.10
netmask 255.255.255.0
gateway 10.10.12.254
smcroute -j ens3 239.0.0.100
Client14
cat /etc/network/interfaces/
auto ens3
iface ens3 inet static
address 10.10.11.1
netmask 255.255.255.0
gateway 10.10.11.254
smcroute -j ens3 239.0.0.100
SW9
enable
configure terminal
!
ip multicast-routing
!
no ip igmp snooping vlan 100
!
hostname SW9
line con 0
exec-t 0 0
exit
no ip domain loo
!
interface Ethernet0/0
switchport access vlan 100
switchport mode access
spanning-tree bpdufilter enable
!
interface Ethernet0/1
switchport access vlan 100
switchport mode access
spanning-tree bpdufilter enable
!
interface Vlan100
ip address 10.10.10.1 255.255.255.0
!
ip route 0.0.0.0 0.0.0.0 10.10.10.254
end
wr
SW10
enable
configure terminal
!
hostname SW10
line con 0
exec-t 0 0
exit
no ip domain loo
interface Ethernet0/0
switchport access vlan 100
switchport mode access
duplex full
!
interface Ethernet0/1
switchport access vlan 100
switchport mode access
duplex full
!
interface Ethernet0/2
switchport access vlan 100
switchport mode access
duplex full
!
interface Vlan100
ip address 10.10.12.254 255.255.255.0
!
ip sla 1
icmp-echo 10.10.12.2 source-interface Vlan100
frequency 10
ip sla schedule 1 life forever start-time now
!
ip route 0.0.0.0 0.0.0.0 10.10.12.2 track 1
ip route 0.0.0.0 0.0.0.0 10.10.12.1
!
end
wr
SW11
enable
configure terminal
!
ip multicast-routing
!
hostname SW11
line con 0
exec-t 0 0
exit
no ip domain loo
!
interface Ethernet0/0
switchport access vlan 100
switchport mode access
duplex full
spanning-tree bpdufilter enable
!
interface Ethernet0/1
switchport access vlan 100
switchport mode access
duplex full
spanning-tree bpdufilter enable
!
interface Vlan100
ip address 10.10.11.1 255.255.255.0
!
ip route 0.0.0.0 0.0.0.0 10.10.11.254
!
end
wr
NXOS1
NX1(config)# show ip pim rp
PIM RP Status Information for VRF "default"
BSR listen-only mode
BSR: 1.1.1.11, uptime: 22:01:27, expires: 00:01:54,
priority: 100, hash-length: 32
Auto-RP disabled
BSR RP Candidate policy: None
BSR RP policy: None
Auto-RP Announce policy: None
Auto-RP Discovery policy: None
!
RP: 1.1.1.2, (0),
uptime: 21:49:40 priority: 90,
RP-source: 1.1.1.11 (B),
group ranges:
224.0.0.0/4 , expires: 00:02:14 (B)
RP: 1.1.1.3, (0),
uptime: 21:49:25 priority: 90,
RP-source: 1.1.1.11 (B),
group ranges:
224.0.0.0/4 , expires: 00:02:14 (B)
RP: 1.1.1.4, (0),
uptime: 21:49:21 priority: 90,
RP-source: 1.1.1.11 (B),
group ranges:
224.0.0.0/4 , expires: 00:02:14 (B)
RP: 1.1.1.11, (0),
uptime: 21:52:31 priority: 100,
RP-source: 1.1.1.11 (B),
group ranges:
224.0.0.0/4 , expires: 00:02:14 (B)
NXOS5
NX5(config)# show ip pim rp
PIM RP Status Information for VRF "default"
BSR: 1.1.1.11, uptime: 22:00:29, expires: 00:01:52,
priority: 100, hash-length: 32
Auto-RP disabled
BSR RP Candidate policy: None
BSR RP policy: None
Auto-RP Announce policy: None
Auto-RP Discovery policy: None
!
RP: 1.1.1.2, (0),
uptime: 21:48:42 priority: 90,
RP-source: 1.1.1.11 (B),
group ranges:
224.0.0.0/4 , expires: 00:02:12 (B)
RP: 1.1.1.3, (0),
uptime: 21:48:26 priority: 90,
RP-source: 1.1.1.11 (B),
group ranges:
224.0.0.0/4 , expires: 00:02:12 (B)
RP: 1.1.1.4, (0),
uptime: 21:48:22 priority: 90,
RP-source: 1.1.1.11 (B),
group ranges:
224.0.0.0/4 , expires: 00:02:12 (B)
RP: 1.1.1.11, (0),
uptime: 21:51:32 priority: 100,
RP-source: 1.1.1.11 (B),
group ranges:
224.0.0.0/4 , expires: 00:02:12 (B)
NXOS6
NX6(config)# show ip pim rp
PIM RP Status Information for VRF "default"
BSR: 1.1.1.11, uptime: 21:56:24, expires: 00:01:53,
priority: 100, hash-length: 32
Auto-RP disabled
BSR RP Candidate policy: None
BSR RP policy: None
Auto-RP Announce policy: None
Auto-RP Discovery policy: None
!
RP: 1.1.1.2, (0),
uptime: 21:44:37 priority: 90,
RP-source: 1.1.1.11 (B),
group ranges:
224.0.0.0/4 , expires: 00:02:13 (B)
RP: 1.1.1.3, (0),
uptime: 21:44:21 priority: 90,
RP-source: 1.1.1.11 (B),
group ranges:
224.0.0.0/4 , expires: 00:02:13 (B)
RP: 1.1.1.4, (0),
uptime: 21:44:18 priority: 90,
RP-source: 1.1.1.11 (B),
group ranges:
224.0.0.0/4 , expires: 00:02:13 (B)
RP: 1.1.1.11, (0),
uptime: 21:47:28 priority: 100,
RP-source: 1.1.1.11 (B),
group ranges:
224.0.0.0/4 , expires: 00:02:13 (B)
NXOS7
NX7(config)# show ip pim rp
PIM RP Status Information for VRF "default"
BSR listen-only mode
BSR: 1.1.1.11, uptime: 21:59:30, expires: 00:01:50,
priority: 100, hash-length: 32
Auto-RP disabled
BSR RP Candidate policy: None
BSR RP policy: None
Auto-RP Announce policy: None
Auto-RP Discovery policy: None
!
RP: 1.1.1.2, (0),
uptime: 21:47:43 priority: 90,
RP-source: 1.1.1.11 (B),
group ranges:
224.0.0.0/4 , expires: 00:02:10 (B)
RP: 1.1.1.3, (0),
uptime: 21:47:27 priority: 90,
RP-source: 1.1.1.11 (B),
group ranges:
224.0.0.0/4 , expires: 00:02:10 (B)
RP: 1.1.1.4, (0),
uptime: 21:47:24 priority: 90,
RP-source: 1.1.1.11 (B),
group ranges:
224.0.0.0/4 , expires: 00:02:10 (B)
RP: 1.1.1.11, (0),
uptime: 21:50:34 priority: 100,
RP-source: 1.1.1.11 (B),
group ranges:
224.0.0.0/4 , expires: 00:02:10 (B)
Verifying IGMP:
NXOS7
NX7# show ip igmp groups
IGMP Connected Group Membership for VRF "default" - 1 total entries
Type: S - Static, D - Dynamic, L - Local, T - SSM Translated, H - Host Proxy
* - Cache Only
Group Address Type Interface Uptime Expires Last Reporter
239.0.0.100 D Ethernet1/4 18:01:49 00:04:15 10.10.12.10
NXOS5
NX5# show ip igmp groups
IGMP Connected Group Membership for VRF "default" - 1 total entries
Type: S - Static, D - Dynamic, L - Local, T - SSM Translated, H - Host Proxy
* - Cache Only
Group Address Type Interface Uptime Expires Last Reporter
239.0.0.100 D Ethernet1/3 18:01:38 00:02:40 10.10.12.10
NXOS1
NX1# show ip igmp groups
IGMP Connected Group Membership for VRF "default" - 1 total entries
Type: S - Static, D - Dynamic, L - Local, T - SSM Translated, H - Host Proxy
* - Cache Only
Group Address Type Interface Uptime Expires Last Reporter
239.0.0.100 D Ethernet1/2 01:54:09 00:03:28 10.10.11.2
PIM neighbor output:
NXOS2
NX2# show ip pim neighbor
PIM Neighbor Status for VRF "default"
Neighbor Interface Uptime Expires DR Bidir- BFD
ECMP Redirect
Priority Capable State
Capable
1.1.1.6 Ethernet1/1 20:52:24 00:01:44 1 yes n/a
no
1.1.1.7 Ethernet1/2 20:52:24 00:01:37 1 yes n/a
no
1.1.1.5 Ethernet1/3 20:52:24 00:01:30 1 yes n/a
no
10.15.0.7 Ethernet1/4 20:14:32 00:01:28 1 no n/a
no
NXOS3
NX3# show ip pim neighbor
PIM Neighbor Status for VRF "default"
Neighbor Interface Uptime Expires DR Bidir- BFD
ECMP Redirect
Priority Capable State
Capable
1.1.1.6 Ethernet1/1 21:18:38 00:01:37 1 yes n/a
no
1.1.1.7 Ethernet1/2 3d05h 00:01:32 1 yes n/a
no
1.1.1.5 Ethernet1/3 3d05h 00:01:37 1 yes n/a
no
10.15.1.7 Ethernet1/4 20:15:41 00:01:40 1 no n/a
no
NXOS4
NX4# show ip pim neighbor
PIM Neighbor Status for VRF "default"
Neighbor Interface Uptime Expires DR Bidir- BFD
ECMP Redirect
Priority Capable State
Capable
1.1.1.1 Ethernet1/1 3d05h 00:01:42 1 yes n/a
no
10.16.0.1 Ethernet1/2 20:16:35 00:01:20 1 no n/a
no
Multicast subscription distribution for group 239.0.0.100:
NXOS1
NX1# show ip mroute
IP Multicast Routing Table for VRF "default"
!
(*, 232.0.0.0/8), uptime: 3d13h, pim ip
Incoming interface: Null, RPF nbr: 0.0.0.0
Outgoing interface list: (count: 0)
!
(*, 239.0.0.100/32), uptime: 02:21:04, igmp ip pim
Incoming interface: Ethernet1/1, RPF nbr: 1.1.1.4
Outgoing interface list: (count: 1)
Ethernet1/2, uptime: 02:21:04, igmp
!
(10.10.10.2/32, 239.0.0.100/32), uptime: 02:21:04, ip mrib pim
Incoming interface: Ethernet1/1, RPF nbr: 1.1.1.4
Outgoing interface list: (count: 1)
Ethernet1/2, uptime: 02:21:04, mrib
NXOS2
NX2# show ip mroute
IP Multicast Routing Table for VRF "default"
!
(*, 232.0.0.0/8), uptime: 20:58:46, pim ip
Incoming interface: Null, RPF nbr: 0.0.0.0
Outgoing interface list: (count: 0)
!
(*, 239.0.0.100/32), uptime: 15:42:29, pim ip
Incoming interface: Ethernet1/4, RPF nbr: 10.15.0.7
Outgoing interface list: (count: 1)
Ethernet1/3, uptime: 15:42:29, pim
!
(10.10.10.2/32, 239.0.0.100/32), uptime: 02:08:48, pim mrib ip
Incoming interface: Ethernet1/1, RPF nbr: 1.1.1.6
Outgoing interface list: (count: 1)
Ethernet1/3, uptime: 02:08:48, pim
NXOS3
NX3# show ip mroute
IP Multicast Routing Table for VRF "default"
!
(*, 232.0.0.0/8), uptime: 3d13h, pim ip
Incoming interface: Null, RPF nbr: 0.0.0.0
Outgoing interface list: (count: 0)
!
(10.10.10.2/32, 239.0.0.100/32), uptime: 02:09:29, pim ip
Incoming interface: Ethernet1/1, RPF nbr: 1.1.1.6
Outgoing interface list: (count: 1)
Ethernet1/4, uptime: 02:06:43, pim
NXOS4
NX4# show ip mroute
IP Multicast Routing Table for VRF "default"
!
(*, 232.0.0.0/8), uptime: 3d13h, pim ip
Incoming interface: Null, RPF nbr: 0.0.0.0
Outgoing interface list: (count: 0)
!
(*, 239.0.0.100/32), uptime: 02:20:05, pim ip
Incoming interface: Ethernet1/2, RPF nbr: 10.16.0.1
Outgoing interface list: (count: 1)
Ethernet1/1, uptime: 02:20:05, pim
!
(10.10.10.2/32, 239.0.0.100/32), uptime: 02:20:04, pim mrib ip
Incoming interface: Ethernet1/2, RPF nbr: 10.16.0.1
Outgoing interface list: (count: 1)
Ethernet1/1, uptime: 02:20:04, pim
NXOS5
NX5# show ip mroute
IP Multicast Routing Table for VRF "default"
!
(*, 232.0.0.0/8), uptime: 3d13h, pim ip
Incoming interface: Null, RPF nbr: 0.0.0.0
Outgoing interface list: (count: 0)
!
(*, 239.0.0.100/32), uptime: 15:58:55, pim ip igmp
Incoming interface: Ethernet1/1, RPF nbr: 1.1.1.2
Outgoing interface list: (count: 1)
Ethernet1/3, uptime: 15:58:55, igmp
!
(10.10.10.2/32, 239.0.0.100/32), uptime: 02:25:14, ip mrib pim
Incoming interface: Ethernet1/1, RPF nbr: 1.1.1.2
Outgoing interface list: (count: 1)
Ethernet1/3, uptime: 02:25:14, mrib
NXOS6
NX6# show ip mroute
IP Multicast Routing Table for VRF "default"
!
(*, 232.0.0.0/8), uptime: 21:11:39, pim ip
Incoming interface: Null, RPF nbr: 0.0.0.0
Outgoing interface list: (count: 0)
!
(10.10.10.2/32, 239.0.0.100/32), uptime: 01:57:55, ip pim
Incoming interface: Ethernet1/3, RPF nbr: 10.10.10.2
Outgoing interface list: (count: 2)
Ethernet1/2, uptime: 01:55:09, pim
Ethernet1/1, uptime: 01:57:55, pim
NXOS7
NX7# show ip mroute
IP Multicast Routing Table for VRF "default"
!
(*, 232.0.0.0/8), uptime: 3d13h, pim ip
Incoming interface: Null, RPF nbr: 0.0.0.0
Outgoing interface list: (count: 0)
R11
R11# show ip mroute
IP Multicast Routing Table
Flags: D - Dense, S - Sparse, B - Bidir Group, s - SSM Group, C - Connected,
L - Local, P - Pruned, R - RP-bit set, F - Register flag,
T - SPT-bit set, J - Join SPT, M - MSDP created entry, E - Extranet,
X - Proxy Join Timer Running, A - Candidate for MSDP Advertisement,
U - URD, I - Received Source Specific Host Report,
Z - Multicast Tunnel, z - MDT-data group sender,
Y - Joined MDT-data group, y - Sending to MDT-data group,
V - RD & Vector, v - Vector
Outgoing interface flags: H - Hardware switched, A - Assert winner
Timers: Uptime/Expires
Interface state: Interface, Next-Hop or VCD, State/Mode
!
(*, 239.0.0.100), 20:20:36/00:03:06, RP 1.1.1.11, flags: S
Incoming interface: Null, RPF nbr 0.0.0.0
Outgoing interface list:
Ethernet0/2, Forward/Sparse, 02:07:17/00:03:04
Ethernet0/0, Forward/Sparse, 15:43:43/00:03:06
!
(10.10.10.2, 239.0.0.100), 02:10:03/00:02:40, flags: T
Incoming interface: Ethernet0/1, RPF nbr 10.15.1.6
Outgoing interface list:
Ethernet0/2, Forward/Sparse, 02:07:17/00:03:04
!
(*, 224.0.1.40), 20:20:48/00:02:16, RP 1.1.1.11, flags: SJCL
Incoming interface: Null, RPF nbr 0.0.0.0
Outgoing interface list:
Loopback0, Forward/Sparse, 20:20:47/00:02:16
Based on the data, the traffic flow looks like this:
Conclusion:
The simulated DC network is operational. Multicast is configured and delivers traffic from source to clients.
Network Architect Course | Lab 05
