Underlay. IS-IS
Goal: Configure IS-IS for the Underlay network.
Lab objectives:
- Configure IS-IS in the Underlay network for IP connectivity between all NX-OS devices.

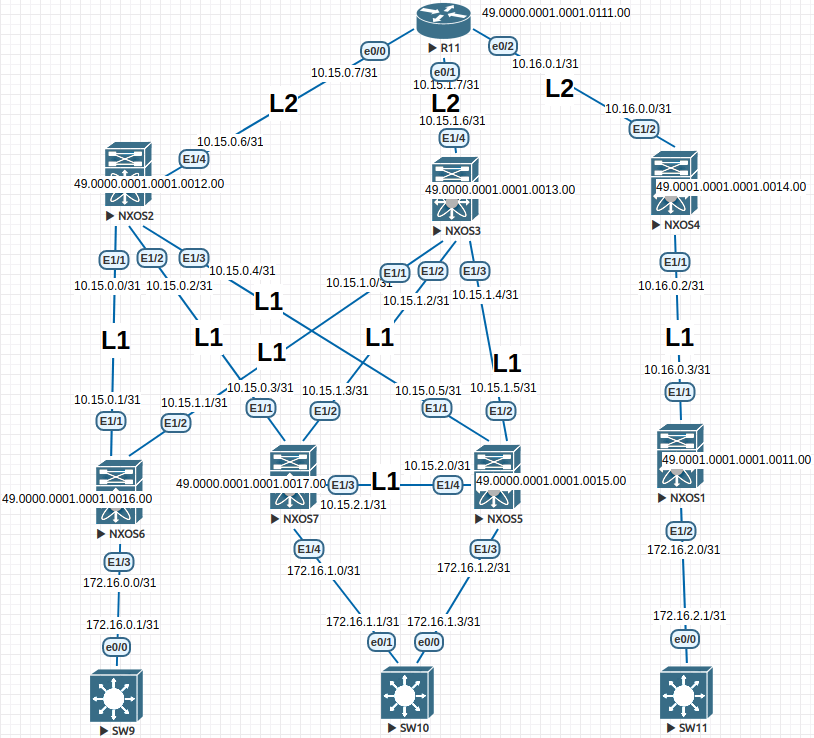

- Document the work plan, address space, network diagram, and configurations.
A few introductory notes:
NXOS2 and NXOS3 operate in IS-IS area 0 (0000), and the Leaf nodes below them belong to the same area. R11 is the inter-area router residing in area 0 and forwarding routes toward NXOS4 in area 1 (0001). Routes follow the topology as shown on the diagram; Loopback addresses are redistributed at L1/L2 to avoid tracking individual connected networks.
NEXUS configuration:
NXOS1
configure terminal
hostname NX1
!
feature isis
!
router isis 1
net 49.0001.0001.0001.0011.00
is-type level-1
log-adjacency-changes
!
no ip domain-lookup
!
interface Ethernet1/1
no switchport
ip address 10.16.0.3/31
isis network point-to-point
isis circuit-type level-1
ip router isis 1
no shutdown
!
interface Ethernet1/2
no switchport
ip address 172.16.2.0/31
default isis passive-interface
isis network point-to-point
isis circuit-type level-1
ip router isis 1
no shutdown
!
interface loopback0
ip address 1.1.1.1/32
isis circuit-type level-1
ip router isis 1
!
end
copy run star
NXOS2
configure terminal
hostname NX2
!
feature isis
!
router isis 1
net 49.0000.0001.0001.0012.00
distribute level-1 into level-2 all
summary-address 10.15.0.0/24 level-1-2
is-type level-1-2
log-adjacency-changes
!
no ip domain-lookup
!
interface Ethernet1/1
no switchport
ip address 10.15.0.0/31
isis network point-to-point
isis circuit-type level-1
ip router isis 1
no shutdown
!
interface Ethernet1/2
no switchport
ip address 10.15.0.2/31
isis network point-to-point
isis circuit-type level-1
ip router isis 1
no shutdown
!
interface Ethernet1/3
no switchport
ip address 10.15.0.4/31
isis network point-to-point
isis circuit-type level-1
ip router isis 1
no shutdown
!
interface Ethernet1/4
no switchport
ip address 10.15.0.6/31
isis network point-to-point
isis circuit-type level-2
ip router isis 1
no shutdown
!
interface loopback0
ip address 1.1.1.2/32
isis circuit-type level-2
ip router isis 1
!
end
copy run star
NXOS3
configure terminal
hostname NX3
!
feature isis
!
router isis 1
net 49.0000.0001.0001.0013.00
is-type level-1-2
distribute level-1 into level-2 all
summary-address 10.15.1.0/24 level-1-2
log-adjacency-changes
!
no ip domain-lookup
!
interface Ethernet1/1
no switchport
ip address 10.15.1.0/31
isis network point-to-point
isis circuit-type level-1
ip router isis 1
no shutdown
!
interface Ethernet1/2
no switchport
ip address 10.15.1.2/31
isis network point-to-point
isis circuit-type level-1
ip router isis 1
no shutdown
!
interface Ethernet1/3
no switchport
ip address 10.15.1.4/31
isis network point-to-point
isis circuit-type level-1
ip router isis 1
no shutdown
!
interface Ethernet1/4
no switchport
ip address 10.15.1.6/31
isis network point-to-point
isis circuit-type level-2
ip router isis 1
no shutdown
!
interface loopback0
ip address 1.1.1.3/32
isis circuit-type level-2
ip router isis 1
!
end
copy run star
NXOS4
configure terminal
hostname NX4
!
no feature isis
feature isis
!
router isis 1
net 49.0001.0001.0001.0014.00
distribute level-1 into level-2 all
summary-address 10.16.0.0/24 level-1-2
is-type level-1-2
log-adjacency-changes
!
no ip domain-lookup
!
interface Ethernet1/1
no switchport
ip address 10.16.0.2/31
isis network point-to-point
isis circuit-type level-1
ip router isis 1
no shutdown
!
interface Ethernet1/2
no switchport
ip address 10.16.0.0/31
isis network point-to-point
isis circuit-type level-2
ip router isis 1
no shutdown
!
interface loopback0
ip address 1.1.1.4/32
isis circuit-type level-1
ip router isis 1
!
end
copy run star
NXOS5
configure terminal
hostname NX5
!
no feature isis
feature isis
!
router isis 1
net 49.0000.0001.0001.0015.00
is-type level-1
log-adjacency-changes
!
ip domain-lookup
!
interface Ethernet1/1
no switchport
ip address 10.15.0.5/31
isis network point-to-point
isis circuit-type level-1
ip router isis 1
no shutdown
!
interface Ethernet1/2
no switchport
ip address 10.15.1.5/31
isis network point-to-point
isis circuit-type level-1
ip router isis 1
no shutdown
!
interface Ethernet1/3
no switchport
ip address 172.16.1.2/31
default isis passive-interface
isis network point-to-point
isis circuit-type level-1
ip router isis 1
no shutdown
!
interface Ethernet1/4
no switchport
ip address 10.15.2.0/31
isis network point-to-point
isis circuit-type level-1
ip router isis 1
no shutdown
!
interface loopback0
ip address 1.1.1.5/32
isis circuit-type level-1
ip router isis 1
!
end
copy run star
NXOS6
configure terminal
hostname NX6
!
no feature isis
feature isis
!
router isis 1
net 49.0000.0001.0001.0016.00
is-type level-1
log-adjacency-changes
!
no ip domain-lookup
!
interface Ethernet1/1
no switchport
ip address 10.15.0.1/31
isis network point-to-point
isis circuit-type level-1
ip router isis 1
no shutdown
!
interface Ethernet1/2
no switchport
ip address 10.15.1.1/31
isis network point-to-point
isis circuit-type level-1
ip router isis 1
no shutdown
!
interface Ethernet1/3
no switchport
ip address 172.16.0.0/31
default isis passive-interface
isis network point-to-point
isis circuit-type level-1
ip router isis 1
no shutdown
!
interface loopback0
ip address 1.1.1.6/32
isis circuit-type level-1-2
ip router isis 1
!
end
copy run star
NXOS7
configure terminal
hostname NX7
!
no feature isis
feature isis
!
router isis 1
net 49.0000.0001.0001.0017.00
is-type level-1
log-adjacency-changes
!
no ip domain-lookup
!
interface Ethernet1/1
no switchport
ip address 10.15.0.3/31
isis network point-to-point
isis circuit-type level-1
ip router isis 1
no shutdown
!
interface Ethernet1/2
no switchport
ip address 10.15.1.3/31
isis network point-to-point
isis circuit-type level-1
ip router isis 1
no shutdown
!
interface Ethernet1/3
no switchport
ip address 10.15.2.1/31
isis network point-to-point
isis circuit-type level-1
ip router isis 1
no shutdown
!
interface Ethernet1/4
no switchport
ip address 172.16.1.0/31
default isis passive-interface
isis network point-to-point
isis circuit-type level-1
ip router isis 1
no shutdown
!
interface loopback0
ip address 1.1.1.7/32
isis circuit-type level-1
ip router isis 1
!
end
copy run star
R11
enable
configure terminal
!
hostname R11
!
no ip domain lookup
!
interface Loopback0
no shutdown
ip address 1.1.1.11 255.255.255.255
ip router isis 1
isis circuit-type level-2-only
!
interface Ethernet0/0
no shutdown
ip address 10.15.0.7 255.255.255.254
ip router isis 1
isis circuit-type level-2-only
isis network point-to-point
!
interface Ethernet0/1
no shutdown
ip address 10.15.1.7 255.255.255.254
ip router isis 1
isis circuit-type level-2-only
isis network point-to-point
!
interface Ethernet0/2
no shutdown
ip address 10.16.0.1 255.255.255.254
ip router isis 1
isis circuit-type level-2-only
isis network point-to-point
!
interface Ethernet0/3
no shutdown
no ip address
shutdown
!
router isis 1
net 49.0000.0001.0001.0111.00
is-type level-2-only
metric-style wide
log-adjacency-changes
!
line con 0
exec-timeout 0 0
!
end
copy run star
Client device configurations:
SW11
enable
configure terminal
!
host SW11
line con 0
exec-t 0 0
exit
no ip domain loo
!
interface e0/0
no sw
ip addr 172.16.2.1 255.255.255.254
duplex full
no sh
exit
!
ip route 0.0.0.0 0.0.0.0 172.16.2.0
end
wr
SW10
enable
configure terminal
!
host SW10
line con 0
exec-t 0 0
exit
no ip domain loo
!
interface e0/0
no sw
ip addr 172.16.1.3 255.255.255.254
duplex full
no sh
exit
!
interface e0/1
no sw
ip addr 172.16.1.1 255.255.255.254
duplex full
no sh
exit
!
ip sla 1
icmp-echo 172.16.1.2 source-interface e0/0
frequency 10
ip sla schedule 1 start-time now life forever
track 1 ip sla 1 reachability
ip route 0.0.0.0 0.0.0.0 172.16.1.2 track 1
!
ip route 0.0.0.0 0.0.0.0 172.16.1.0 10
end
wr
SW9
enable
configure terminal
!
host SW9
line con 0
exec-t 0 0
exit
no ip domain loo
!
interface e0/0
no sw
ip addr 172.16.0.1 255.255.255.254
duplex full
no sh
exit
!
ip route 0.0.0.0 0.0.0.0 172.16.0.0
end
wr
Device output:
R11#show ip route isis
Codes: L - local, C - connected, S - static, R - RIP, M - mobile, B - BGP
D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
E1 - OSPF external type 1, E2 - OSPF external type 2
i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
ia - IS-IS inter area, * - candidate default, U - per-user static route
o - ODR, P - periodic downloaded static route, H - NHRP, l - LISP
a - application route
+ - replicated route, % - next hop override
Gateway of last resort is not set
1.0.0.0/32 is subnetted, 8 subnets
i L2 1.1.1.1 [115/51] via 10.16.0.0, 08:16:35, Ethernet0/2
i L2 1.1.1.2 [115/11] via 10.15.0.6, 2d11h, Ethernet0/0
i L2 1.1.1.3 [115/11] via 10.15.1.6, 08:48:48, Ethernet0/1
i L2 1.1.1.4 [115/11] via 10.16.0.0, 08:16:35, Ethernet0/2
i L2 1.1.1.5 [115/51] via 10.15.0.6, 08:59:37, Ethernet0/0
i L2 1.1.1.6 [115/51] via 10.15.0.6, 00:12:00, Ethernet0/0
i L2 1.1.1.7 [115/51] via 10.15.0.6, 00:13:57, Ethernet0/0
10.0.0.0/8 is variably subnetted, 12 subnets, 3 masks
i L2 10.15.0.0/24 [115/50] via 10.15.0.6, 09:42:11, Ethernet0/0
i L2 10.15.1.0/31 [115/50] via 10.15.1.6, 08:48:48, Ethernet0/1
i L2 10.15.1.2/31 [115/50] via 10.15.1.6, 08:48:48, Ethernet0/1
i L2 10.15.1.4/31 [115/50] via 10.15.1.6, 08:48:48, Ethernet0/1
i L2 10.15.2.0/31 [115/90] via 10.15.0.6, 08:59:37, Ethernet0/0
i L2 10.16.0.0/24 [115/50] via 10.16.0.0, 08:16:35, Ethernet0/2
172.16.0.0/31 is subnetted, 4 subnets
i L2 172.16.0.0 [115/90] via 10.15.0.6, 00:12:00, Ethernet0/0
i L2 172.16.1.0 [115/90] via 10.15.0.6, 00:13:57, Ethernet0/0
i L2 172.16.1.2 [115/90] via 10.15.0.6, 08:59:37, Ethernet0/0
i L2 172.16.2.0 [115/90] via 10.16.0.0, 08:16:35, Ethernet0/2
R11#show isis neighbors
Tag 1:
System Id Type Interface IP Address State Holdtime Circuit Id
NX2 L2 Et0/0 10.15.0.6 UP 29 01
NX3 L2 Et0/1 10.15.1.6 UP 23 01
NX4 L2 Et0/2 10.16.0.0 UP 29 01
IS-IS neighbor output:
NXOS4
NX4# show isis adjacency
IS-IS process: 1 VRF: default
IS-IS adjacency database:
Legend: '!': No AF level connectivity in given topology
System ID SNPA Level State Hold Time Interface
NX1 N/A 1 UP 00:00:26 Ethernet1/1
R11 N/A 2 UP 00:00:28 Ethernet1/2
NXOS3
NX3# show isis adjacency
IS-IS process: 1 VRF: default
IS-IS adjacency database:
Legend: '!': No AF level connectivity in given topology
System ID SNPA Level State Hold Time Interface
NX6 N/A 1 UP 00:00:25 Ethernet1/1
NX7 N/A 1 UP 00:00:26 Ethernet1/2
NX5 N/A 1 UP 00:00:30 Ethernet1/3
R11 N/A 2 UP 00:00:29 Ethernet1/4
NXOS2
NX2# show isis adjacency
IS-IS process: 1 VRF: default
IS-IS adjacency database:
Legend: '!': No AF level connectivity in given topology
System ID SNPA Level State Hold Time Interface
NX6 N/A 1 UP 00:00:23 Ethernet1/1
NX7 N/A 1 UP 00:00:29 Ethernet1/2
NX5 N/A 1 UP 00:00:25 Ethernet1/3
R11 N/A 2 UP 00:00:26 Ethernet1/4
Verifying connectivity between DCs:
SW9
SW9#ping 172.16.2.1 repeat 100
Type escape sequence to abort.
Sending 100, 100-byte ICMP Echos to 172.16.2.1, timeout is 2 seconds:
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
Success rate is 100 percent (100/100), round-trip min/avg/max = 27/78/608 ms
SW9#ping 172.16.1.3 repeat 100
Type escape sequence to abort.
Sending 100, 100-byte ICMP Echos to 172.16.1.3, timeout is 2 seconds:
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
Success rate is 100 percent (100/100), round-trip min/avg/max = 12/36/106 ms
SW11
SW11#ping 172.16.0.1 repeat 100
Type escape sequence to abort.
Sending 100, 100-byte ICMP Echos to 172.16.0.1, timeout is 2 seconds:
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
Success rate is 100 percent (100/100), round-trip min/avg/max = 27/71/433 ms
Conclusion:
The simulated two-DC network is operational. IS-IS is running and end-to-end connectivity between all endpoints is confirmed.
Network Architect Course | Lab 03
