Which virtual MAC address is used by VRRP group 1?
A0050.0c05.ad81
B0007.c061.bc01
C0000.5E00.0101
D0500.3976.6401
Correct Answer:C
Q517(none)
Which type of traffic Is sent with pure iPsec?
Abroadcast packets from a switch that is attempting to locate a MAC address at one of several remote sites
Bmulticast traffic from a server at one site to hosts at another location
Cspanning-tree updates between switches that are at two different sites
Dunicast messages from a host at a remote site lo a server at headquarters
Correct Answer:D
Q518(none)
What is the purpose of an SSID?
AIt provides network security
BIt differentiates traffic entering access posits
CIt identities an individual access point on a WLAN D. It identifies a WLAN
Correct Answer:D
Q519(none)
What is a similarly between 1000BASE-LX and 1000BASE-T standards?
ABoth use the same data-link header and trailer formats
BBoth cable types support LP connectors
CBoth cable types support Rj-45 connectors
DBoth support up to 550 meters between nodes
Correct Answer:A
Q520(none)
What is a capability of FTP in network management operations?
Aencrypts data before sending between data resources
Bdevices are directly connected and use UDP to pass file information
Cuses separate control and data connections to move files between server and client
Doffers proprietary support at the session layer when transferring data
Correct Answer:C
- Control Connection: The control connection uses very simple rules for communication. Through control connection, we can transfer a line of command or line of response at a time. The control connection is made between the control processes. The control connection remains connected during the entire interactive FTP session. - Data Connection: The Data Connection uses very complex rules as data types may vary. The data connection is made between data transfer processes. The data connection opens when a command comes for transferring the files and closes when the file is transferred. https://www
Q521(none)

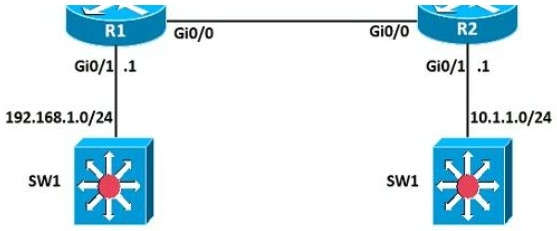

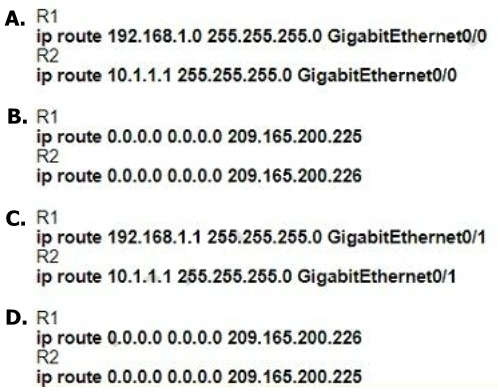

Refer to the exhibit. A network engineer is in the process of establishing IP connectivity between two sites. Routers R1 and R2 are partially configured with IP addressing. Both routers have the ability to access devices on their respective LANs. Which command set configures the IP connectivity between devices located on both LANs in each site? A. Option A
BOption B
COption C
DOption D
Correct Answer:C
Q522(none)
Which type of organization should use a collapsed-core architecture? A. large and requires a flexible, scalable network design
Blarge and must minimize downtime when hardware fails
Csmall and needs to reduce networking costs currently
Dsmall but is expected to grow dramatically in the near future
