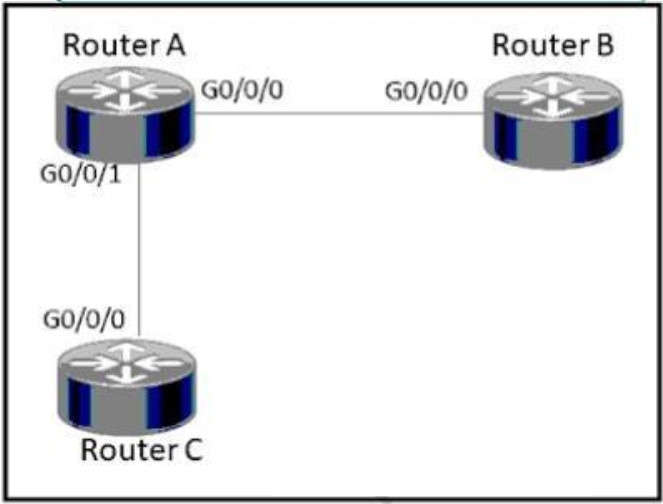

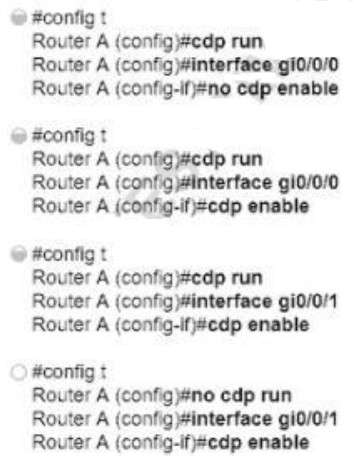

Refer to the exhibit. How must router A be configured so that it only sends Cisco Discovery Protocol Information to router C? A. Option A
BOption B
COption C
DOption D
Correct Answer:A
Q454(none)
Which global command encrypt all passwords in the running configuration?
Apassword-encrypt
Benable password-encryption
Cenable secret
Dservice password-encryption
Correct Answer:D
QUESTION 455 What is the function of a hub-and-spoke WAN topology? A. allows access restrictions to be implemented between subscriber sites. B. provides direct connections between subscribers C. supports Layer 2 VPNs D. supports application optimization Correct Answer: B Section: (none) Explanation Explanation/Reference:
Q456(none)
An implementer is preparing hardware for virtualization to create virtual machines on a host. What is needed to provide communication between hardware and virtual machines?
Ahypervisor
Brouter
Cstraight cable
Dswitch
Correct Answer:A
Q457(none)
Which two components are needed to create an Ansible script that configures a VLAN on a switch? (Choose two.)
Choose 2 — select all that apply
Acookbook
Btask
Cplaybook
Dmodel
Erecipe
Correct Answer:BC
Ansible playbooks: “files that provide actions and logic about what Ansible should do.” “The playbook will list tasks and choices based on those results, like “Configure all branch routers in these locations, and if errors occur for any device, do these extra tasks for that device”.”
Q458(none)
Refer to the exhibit. Which two prefixes are included in this routing table entry? (Choose two.) A. 192.168.1.17
Choose 2 — select all that apply
B192.168.1.61
C192.168.1.64
D192.168.1.127
E192.168.1.254
Correct Answer:AB
Q459(none)
Which two primary drivers support the need for network automation? (Choose two.)
Choose 2 — select all that apply
AEliminating training needs
Bncreasing reliance on self-diagnostic and self-healing
CPolicy-derived provisioning of resources
DProviding a ship entry point for resource provisioning
EReducing hardware footprint
Correct Answer:CD
Q460(none)
What is a characteristic of cloud-based network topology?
Awireless connections provide the sole access method to services
Bonsite network services are provided with physical Layer 2 and Layer 3 components
Cservices are provided by a public, private, or hybrid deployment
Dphysical workstations are configured to share resources
Correct Answer:C
Q461(none)
A network analyst is tasked with configured the date and time on a router using EXEC mode. The date must be set to 12:00am. Which command should be used? A. Clock timezone
BClock summer-time-recurring
CClock summer-time date
DClock set
Correct Answer:D
Q462(none)
Which HTTP status code is returned after a successful REST API request?
A200
B301
C404
D500
Correct Answer:A
Q463(none)

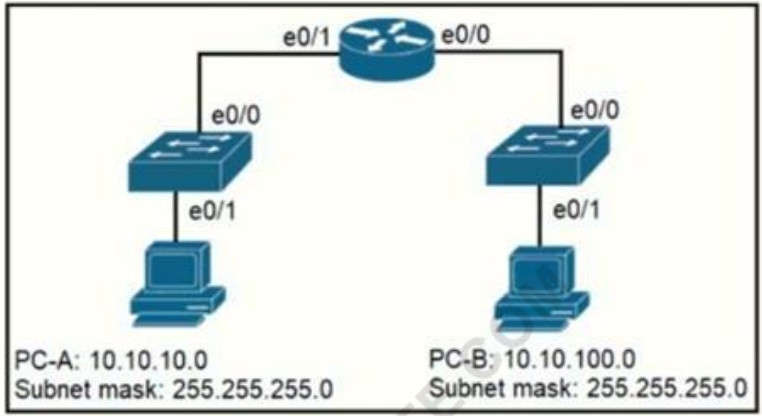

Refer to the exhibit. When PC-A sends traffic to PC-B, which network component is in charge of receiving the packet from PC-A verifying the IP addresses, and forwarding the packet to PC-B?
