CCNA Quiz — Page 34 (Q354–Q363)

Q354 (none)

What is the purpose of traffic shaping?

A to mitigate delays over slow links

B to provide fair queuing for buffered flows

C to limit the bandwidth that a flow can use to

D be a marking mechanism that identifies different flows

Q355 (none)

Which configuration management mechanism uses TCP port 22 by default when communicating with managed nodes?

A Ansible

B Python

C Puppet

D Chef

Q356 (none)

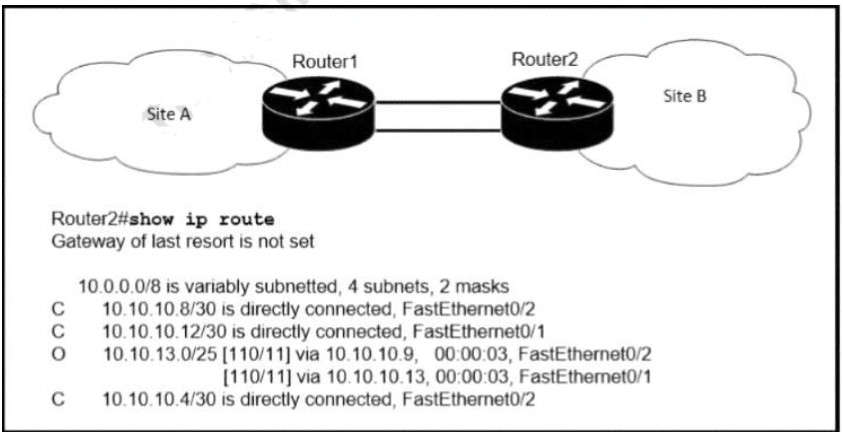

Refer to the exhibit. If OSPF Is running on this network, how does Router2 handle traffic from Site B to 10.10.13.128/25 at Site A? A. It load-balances traffic out of Fa0/1 and Fa0/2.

B It is unreachable and discards the traffic.

C It sends packets out of interface Fa0/2.

D It sends packets out of interface Fa0/1.

Q357 (none)

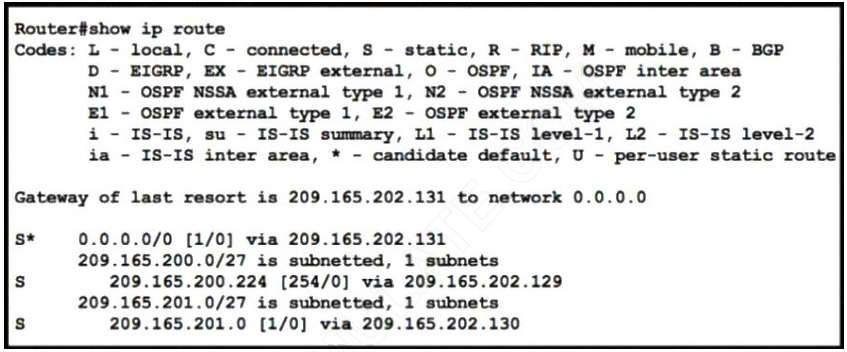

Refer to the exhibit. Which command configures a floating static route to provide a backup to the primary link? A. ip route 0.0.0.0 0.0.0.0 209.165.202.131

B ip route 209.165.201.0 255.255.255.224 209.165.202.130

C ip route 0.0.0.0 0.0.0.0 209.165.200.224

D ip route 209.165.200.224 255.255.255.224 209.165.202.129 254

Q358 (none)

What is a practice that protects a network from VLAN hopping attacks?

A Enable dynamic ARP inspection

B Configure an ACL to prevent traffic from changing VLANs

C Change native VLAN to an unused VLAN ID

D Implement port security on internet-facing VLANs

Q359 (none)

Which technology can prevent client devices from arbitrarily connecting to the network without state remediation?

A 802.1x

B IP Source Guard

C MAC Authentication Bypass

D 802.11n

Q360 (none)

What facilitates a Telnet connection between devices by entering the device name?

A SNMP

B DNS lookup

C syslog

D NTP

Q361 (none)

How does the dynamically-learned MAC address feature function?

A The CAM table is empty until ingress traffic arrives at each port

B Switches dynamically learn MAC addresses of each connecting CAM table.

C The ports are restricted and learn up to a maximum of 10 dynamically-learned addresses

D It requires a minimum number of secure MAC addresses to be filled dynamically

Q362 (none)

When implementing a router as a DHCP server, which two features must be configured? (Choose two)

Choose 2 — select all that apply

A relay agent information

B database agent

C address pool

D smart-relay

E manual bindings

Q363 (none)

Which command must be entered to configure a DHCP relay?

A ip helper-address

B ip address dhcp

C ip dhcp pool

D ip dhcp relay
