An engineer must establish a trunk link between two switches. The neighboring switch is set to trunk or desirable mode. What action should be taken?
Aconfigure switchport nonegotiate
Bconfigure switchport mode dynamic desirable
Cconfigure switchport mode dynamic auto
Dconfigure switchport trunk dynamic desirable
Correct Answer:C
Q323(none)
Which type of information resides on a DHCP server?
Aa list of the available IP addresses in a pool
Ba list of public IP addresses and their corresponding names
Cusernames and passwords for the end users in a domain D. a list of statically assigned MAC addresses
Correct Answer:A
Q324(none)
What is a function of Wireless LAN Controller?
Aregister with a single access point that controls traffic between wired and wireless endpoints.
Buse SSIDs to distinguish between wireless clients.
Csend LWAPP packets to access points.
Dmonitor activity on wireless and wired LANs
Correct Answer:C
Lightweight APs (LAPs) is devices require no initial configuration. LAPs use the Lightweight Access Point Protocol (LWAPP) to communicate with a WLAN controller (WLC), as shown in the below figure. Controllerbased APs are useful in situations where many APs are required in the network. As more APs are added, each AP is automatically configured and managed by the WLC.
Q326(none)
Which technology must be implemented to configure network device monitoring with the highest security?
Asyslog
BNetFlow
CIP SLA
DSNMPv3
Correct Answer:D
Q327(none)
What is the function of a server?
AIt transmits packets between hosts in the same broadcast domain.
BIt provides shared applications to end users.
CIt routes traffic between Layer 3 devices.
DIt Creates security zones between trusted and untrusted networks
Correct Answer:B
Q328(none)

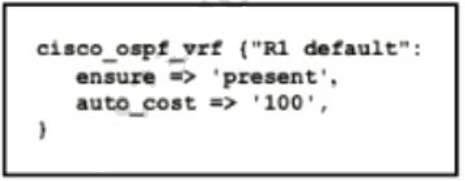

Refer to the exhibit. Which type of configuration is represented in the output?
AAnsible
BJSON C. Chef
DPuppet
Correct Answer:D
Q329(none)
A port security violation has occurred on a switch port due to the maximum MAC address count being exceeded Which command must be configured to increment the security-violation count and forward an SNMP trap?
Which spanning-tree enhancement avoids the learning and listening states and immediately places ports in the forwarding state?
ABPDUfilter
BPortFast
CBackbonefast
DBPDUguard
Correct Answer:B
PortFast Spanning Tree Portfast causes layer 2 switch interfaces to enter forwarding state immediately, bypassing the listening and learning states. It should be used on ports connected directly to end hosts like servers or workstations. Note: If portfast isn’t enabled, DHCP timeouts can occur while STP converges, causing more problems. Reference: https://itexamanswers.net/ccnp-switch-spanning-tree-stp.html
Q331(none)
What are two functions of a Layer 2 switch? (Choose two)
Choose 2 — select all that apply
Aacts as a central point for association and authentication servers
Bselects the best route between networks on a WAN
Cmoves packets within a VLAN
Dmoves packets between different VLANs E. makes forwarding decisions based on the MAC address of a packet
Correct Answer:CE
Q332(none)
A manager asks a network engineer to advise which cloud service models are used so employees do not have to waste their time installing, managing, and updating software which is only used occasionally Which cloud service model does the engineer recommend?
Ainfrastructure-as-a-service
Bplatform-as-a-service
Cbusiness process as service to support different types of service
