CCNA Quiz — Page 24 (Q248–Q257)

Q248 (none)

Which two statements are true about the command ip route 172.16.3.0 255.255.255.0 192.168.2.4? (Choose two.)

Choose 2 — select all that apply

A It establishes a static route to the 172.16.3.0 network.

B It establishes a static route to the 192.168.2.0 network.

C It configures the router to send any traffic for an unknown destination to the 172.16.3.0 network.

D It configures the router to send any traffic for an unknown destination out the interface with the address 192.168.2.4.

E It uses the default administrative distance. F. It is a route that would be used last if other routes to the same destination exist.

Q249 (none)

Which three statements are typical characteristics of VLAN arrangements? (Choose three.)

Choose 3 — select all that apply

A A new switch has no VLANs configured.

B Connectivity between VLANs requires a Layer 3 device.

C VLANs typically decrease the number of collision domains.

D Each VLAN uses a separate address space.

E A switch maintains a separate bridging table for each VLAN. F. VLANs cannot span multiple switches.

Q250 (none)

Refer to the exhibit. To which device does Router1 send packets that are destined to host 10.10.13.165? A. Router2

B Router3

C Router4

D Router5

Q251 (none)

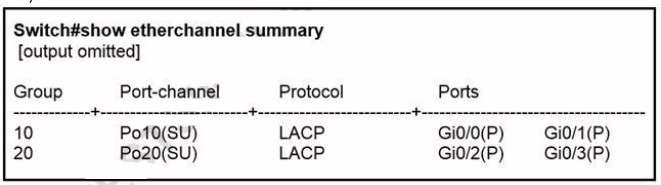

Refer to the exhibit. Which two commands were used to create port channel 10? (Choose two.) A. int range g0/0-1 channel-group 10 mode active

Choose 2 — select all that apply

B int range g0/0-1 channel-group 10 mode desirable

C int range g0/0-1 channel-group 10 mode passive

D int range g0/0-1 channel-group 10 mode auto

E int range g0/0-1 channel-group 10 mode on

Q252 (none)

What are two requirements for an HSRP group? (Choose two.)

Choose 2 — select all that apply

A exactly one active router

B one or more standby routers

C one or more backup virtual routers

D exactly one standby active router

E exactly one backup virtual router

Q253 (none)

What occurs to frames during the process of frame flooding?

A Frames are sent to all ports, including those that are assigned to other VLANs.

B Frames are sent to every port on the switch that has a matching entry in MAC address table. C. Frames are sent to every port on the switch in the same VLAN except from the originating port.

D Frames are sent to every port on the switch in the same VLAN.

Q254 (none)

If all OSPF routers in a single area are configured with the same priority value, what value does a router use for the OSPF router ID in the absence of a loopback interface?

A the IP address of the first Fast Ethernet interface

B the IP address of the console management interface

C the highest IP address among its active interfaces

D the lowest IP address among its active interfaces

E the priority value until a loopback interface is configured

Q255 (none)

Which IPv6 address block forwards packets to a multicast address rather than a unicast address?

A 2000::/3

B FC00::/7

C FE80::/10

D FF00::/12

Q256 (none)

The OSPF Hello protocol performs which of the following tasks? (Choose two.)

Choose 2 — select all that apply

A It negotiates correctness parameters between neighboring interfaces.

B It broadcasts hello packets throughout the internetwork to discover all routers that are running OSP

C It provides dynamic neighbor discovery.

D It detects unreachable neighbors in 90 second intervals.

E It uses timers to elect the router with the fastest links as the designated router. F. It maintains neighbor relationships

Q257 (none)

What are two benefits of using VTP in a switching environment? (Choose two.)

Choose 2 — select all that apply

A It allows switches to read frame tags.

B It allows ports to be assigned to VLANs automatically.

C It maintains VLAN consistency across a switched network.

D It allows frames from multiple VLANs to use a single interface.

E It allows VLAN information to be automatically propagated throughout the switching environment.
