CCNA Quiz — Page 22 (Q227–Q237)

Q227 (none)

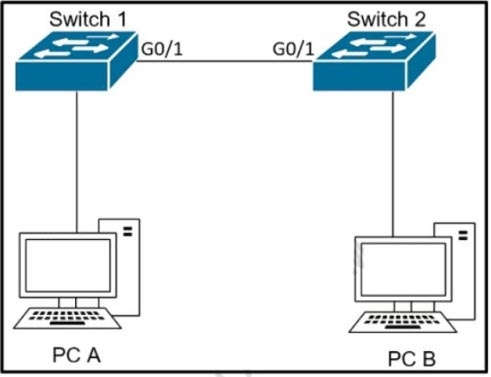

Refer to the exhibit. The network administrator wants VLAN 67 traffic to be untagged between Switch 1 and Switch 2 while all other VLANs are to remain tagged. Which command accomplishes this task? A. switchport access vlan 67

B switchport trunk allowed vlan 67

C switchport private-vlan association host 67

D switchport trunk native vlan 67

Q228 (none)

What are two differences between optical-fiber cabling and copper cabling? (Choose two)

Choose 2 — select all that apply

A Light is transmitted through the core of the fiber

B A BNC connector is used for fiber connections

C The glass core component is encased in a cladding

D Fiber connects to physical interfaces using Rj-45 connections

E The data can pass through the cladding

Q229 (none)

Which two minimum parameters must be configured on an active interface to enable OSPFv2 to operate? (Choose two)

Choose 2 — select all that apply

A OSPF area

B OSPF MD5 authentication key

C iPv6 address

D OSPf process ID

E OSPf stub flag

Q230 (none)

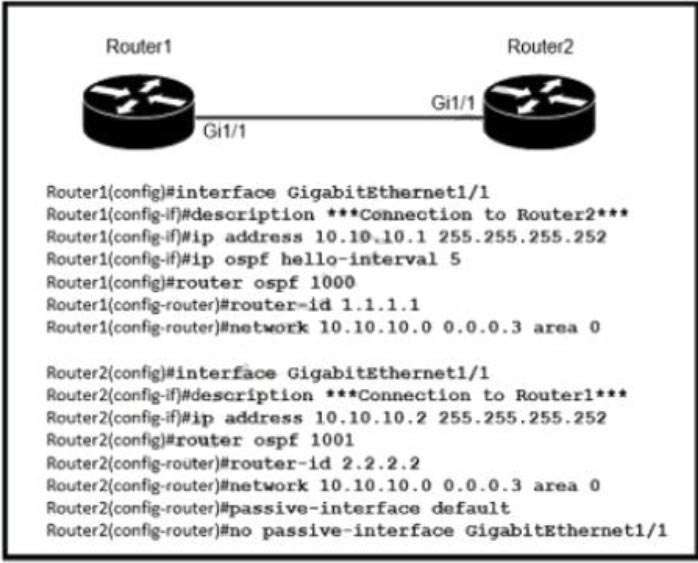

Refer to the exhibit. Refer to the exhibit. After the configuration is applied, the two routers fail to establish an OSPF neighbor relationship. what is the reason for the problem? A. The OSPF router IDs are mismatched.

B Router2 is using the default hello timer.

C The network statement on Router1 is misconfigured.

D The OSPF process IDs are mismatched.

Q231 (none)

How do TCP and UDP differ in the way they provide reliability for delivery of packets?

A TCP is a connectionless protocol that does not provide reliable delivery of data, UDP is a connectionoriented protocol that uses sequencing to provide reliable delivery.

B TCP does not guarantee delivery or error checking to ensure that there is no corruption of data UDP provides message acknowledgement and retransmits data if lost. C. TCP provides flow control to avoid overwhelming a receiver by sending too many packets at once, UDP sends packets to the receiver in a continuous stream without checking for sequencing

D TCP uses windowing to deliver packets reliably; UDP provides reliable message transfer between hosts by establishing a three-way handshake

Q232 (none)

A packet is destined for 10.10.1.22. Which static route does the router choose to forward the packet?

A ip route 10.10.1.0 255.255.255.240 10.10.255.1

B ip route 10.10.1.16 255.255.255.252 10.10.255.1

C ip route 10.10.1.20 255.255.255.252 10.10.255.1

D ip route 10.10.1.20 255.255.255.254 10.10.255.1

Q233 (none)

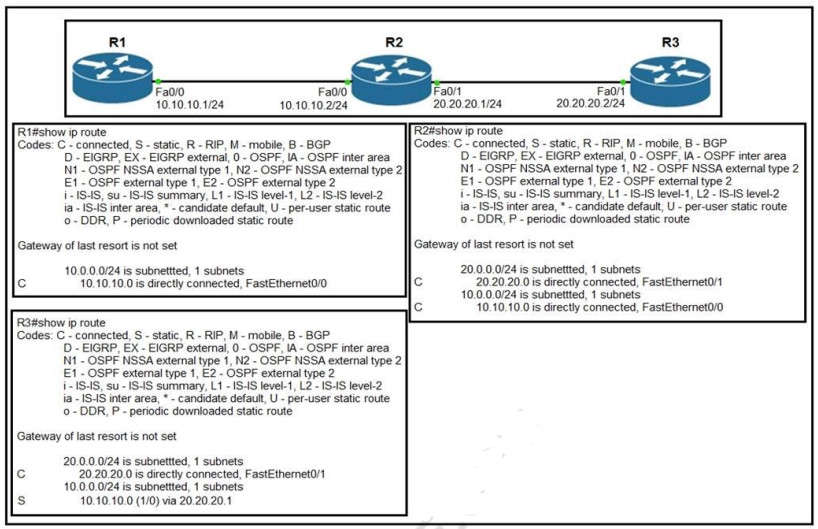

Refer to the exhibit. Router R1 Fa0/0 cannot ping router R3 Fa0/1. Which action must be taken in router R1 to help resolve the configuration issue? A. set the default network as 20.20.20.0/24

B set the default gateway as 20.20.20.2

C configure a static route with Fa0/1 as the egress interface to reach the 20.20.20.0/24 network

D configure a static route with 10.10.10.2 as the next hop to reach the 20.20.20.0/24 network

Q234 (none)

Refer to the exhibit. Refer to the exhibit. An engineer must add a subnet for a new office that will add 20 users to the network. Which IPv4 network and subnet mask combination does the engineer assign to minimize wasting addresses? A. 10.10.225.48 255.255.255.240

B 10.10.225.32 255.255.255.240

C 10.10.225.48 255.255.255.224

D 10.10.225.32 255.255.255.224

Q235 (none)

A corporate office uses four floors in a building * Floor 1 has 24 users * Floor 2 has 29 users * Floor 3 has 28 users * Floor 4 has 22 users Which subnet summarizes and gives the most efficient distribution of IP addresses for the router configuration?

A 192.168.0.0/26 as summary and 192.168.0.0/29 for each floor

B 192.168.0.0.24 as summary and 192.168.0.0/28 for each floor

C 192.168.0.0/23 as summary and 192.168.0.0/25 for each floor

D 192.168.0.0/25 as summary and 192.168.0.0/27 for each floor

Q237 (none)

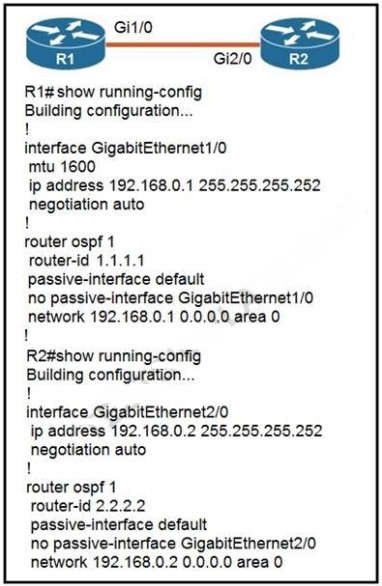

Refer to the exhibit. Which configuration issue is preventing the OSPF neighbor relationship from being established between the two routers?

A R2 is using the passive-interface default command

B R1 has an incorrect network command for interface Gi1/0

C R2 should have its network command in area 1

D R1 interface Gi1/0 has a larger MTU size
