Which unified access point mode continues to serve wireless clients after losing connectivity to the Cisco Wireless LAN Controller?
Asniffer B. mesh
Cflexconnect
Dlocal
Correct Answer:C
In previous releases, whenever a FlexConnect access point disassociates from a controller, it moves to the standalone mode. The clients that are centrally switched are disassociated. However, the FlexConnect access point continues to serve locally switched clients. When the FlexConnect access point rejoins the controller (or a standby controller), all clients are disconnected and are authenticated again. This functionality has been enhanced and the connection between the clients and the FlexConnect access points are maintained intact and the clients experience seamless connectivity. When both
Q154(none)

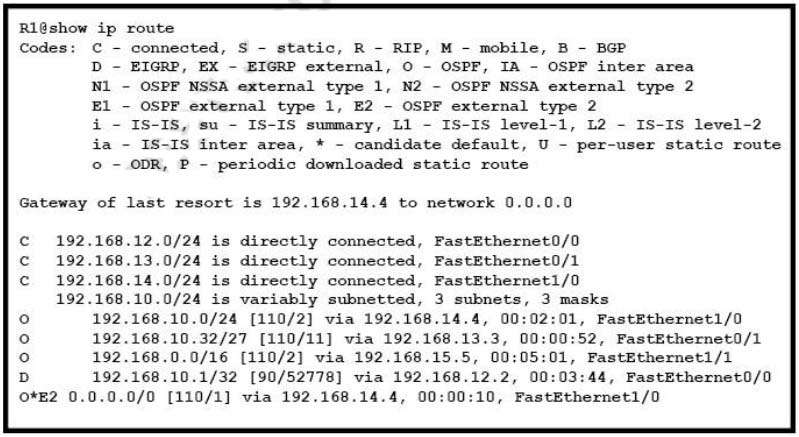

Refer to exhibit. What Administrative distance has route to 192.168.10.1 ?
A1
B90
C110
D120
Correct Answer:B
Q155(none)

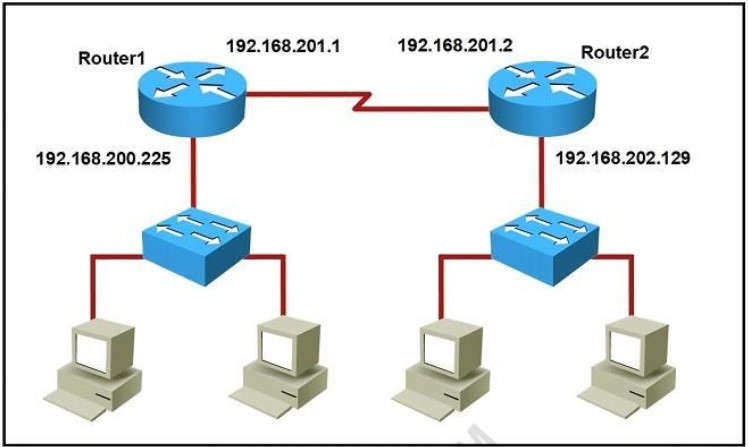

Refer to the exhibit. Which command would you use to configure a static route on Router1 to network 192.168.202.0/24 with a nondefault administrative distance?
The default AD of static route is 1 so we need to configure another number for the static route.
Q156(none)
Which feature or protocol is required for an IP SLA to measure UDP jitter?
ALLDP
BEEM
CCDP
DNTP
Correct Answer:D
Q157(none)
Which effete does the aaa new-model configuration command have?
AIt enables AAA services on the device
BIt configures the device to connect to a RADIUS server for AAA
CIt associates a RADIUS server to an group.
DIt configures a local user on the device.
Correct Answer:A
Q158(none)

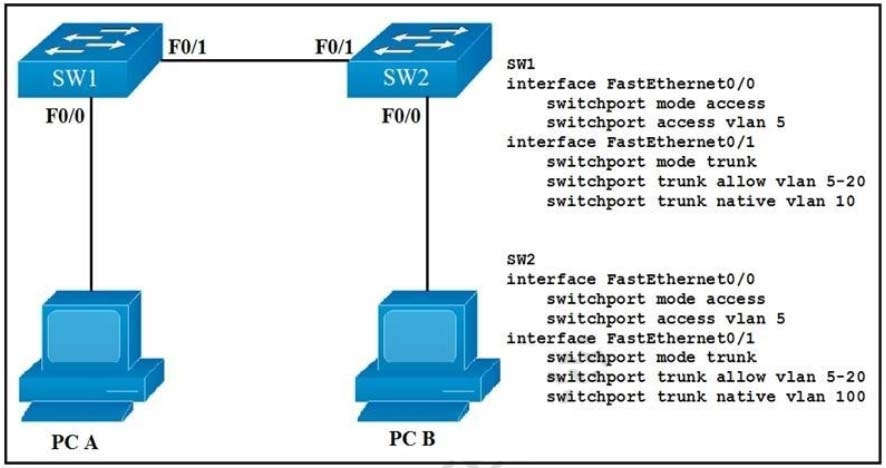

Refer to the exhibit. How will switch SW2 handle traffic from VLAN 10 on SW1?
AIt sends the traffic to VLAN 10.
BIt sends the traffic to VLAN 100.
CIt drops the traffic.
DIt sends the traffic to VLAN 1.
Correct Answer:B
Since SW-1 is configured native VLAN is VLAN10, so traffic coming out of VLAN-10 is untagged, & goes directly to SW-2 Native VLAN: VLAN100, due to VLAN mismatch.
Q159(none)
Which two commands can you use to configure an actively negotiate EtherChannel? (Choose two)
Choose 2 — select all that apply
Achannel-group 10 mode on
Bchannel-group 10 mode auto
Cchannel-group 10 mode passive
Dchannel-group 10 mode desirable
Echannel-group 10 mode active
Correct Answer:DE
Q160(none)
What is the binary pattern of unique ipv6 unique local address?
A00000000
B11111100
C11111111
D11111101
Correct Answer:B
A IPv6 Unique Local Address is an IPv6 address in the block FC00::/7, which means that IPv6 Unique Local addresses begin with 7 bits with exact binary pattern as 1111 110 -> Answer B is correct. Note: IPv6 Unique Local Address is the approximate IPv6 counterpart of the IPv4 private address. It is not routable on the global Internet.
Q161(none)
Which two statements about exterior routing protocols are true? (Choose two.)
Choose 2 — select all that apply
AThey determine the optimal within an autonomous system.
BThey determine the optimal path between autonomous systems.
CBGP is the current standard exterior routing protocol.
DMost modern networking supports both EGP and BGP for external routing.
EMost modern network routers support both EGP and EIGRP for external routing.
Correct Answer:BC
Q162(none)
What is the destination MAC address of a broadcast frame? A. 00:00:0c:07:ac:01
