CCNA Quiz — Page 13 (Q131–Q140)

Q131 Not categorized

Which three statements about MAC addresses are correct? (Choose three.)

Choose 3 — select all that apply

A To communicate with other devices on a network, a network device must have a unique MAC address.

B The MAC address is also referred to as the IP address.

C The MAC address of a device must be configured in the Cisco IOS CLI by a user with administrative privileges.

D A MAC address contains two main components, the first of which identifies the manufacturer of the hardware and the second of which uniquely identifies the hardware.

E An example of a MAC address is 0A:26:38: D6:65:90. F. A MAC address contains two main components, the first of which identifies the network on which the host resides and the second of which uniquely identifies the host on the network.

Q132 Not categorized

Which three statements about network characteristics are true? (Choose three.)

Choose 3 — select all that apply

A Speed is a measure of the data rate in bits per second of a given link in the network.

B Scalability indicates how many nodes are currently on the network.

C The logical topology is the arrangement of cables, network devices, and end systems.

D Availability is a measure of the probability that the network will be available for use when it is required.

E Reliability indicates the dependability of the components that make up the network.

Q133 Not categorized

Which two statements about the purpose of the OSI model are accurate? (Choose two.)

Choose 2 — select all that apply

A Defines the network functions that occur at each layer

B Facilitates an understanding of how information travels throughout a network

C Changes in one layer do not impact other layer

D Ensures reliable data delivery through its layered approach

Q134 (none)

You have two paths for the 10.10.10.0 network – one that has a feasible distance of 3072 and the other of 6144. What do you need to do to load balance your EIGRP routes?

Choose 2 — select all that apply

A Change the maximum paths to 2

B Change the configuration so they both have the same feasible distance

C Change the variance for the path that has a feasible distance of 3072 to 2

D Change the IP addresses so both paths have the same source IP address

Q135 (none)

Which of the following dynamic routing protocols are Distance Vector routing protocols?

Choose 2 — select all that apply

A IS-IS B. EIGRP

C OSPF

D BGP

E RIP

Q136 (none)

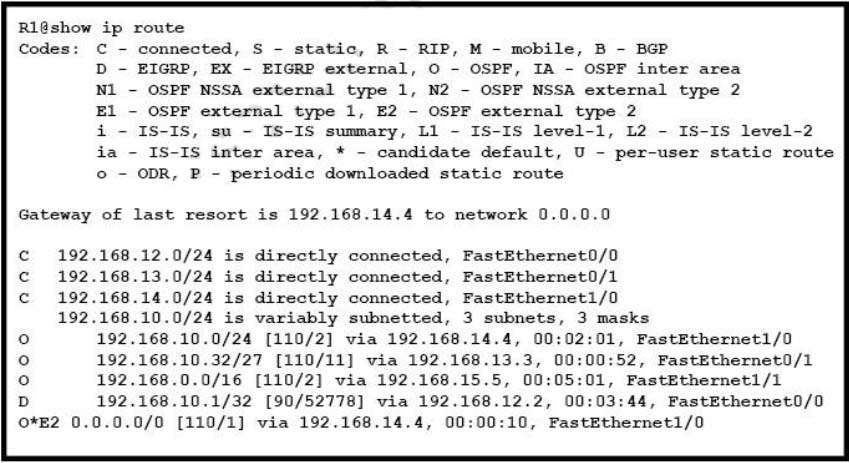

Refer to the exhibit. If R1 receives a packet destined to 172.16.1.1, to which IP address does it send the packet?

A 192.168.14.4

B 192.168.12.2

C 192.168.13.3

D 192.168.15.5

Q137 (none)

Which two VLAN IDs indicate a default VLAN? (Choose two.) A. 0

Choose 2 — select all that apply

B 1

C 1005

D 1006

E 4096

Q138 (none)

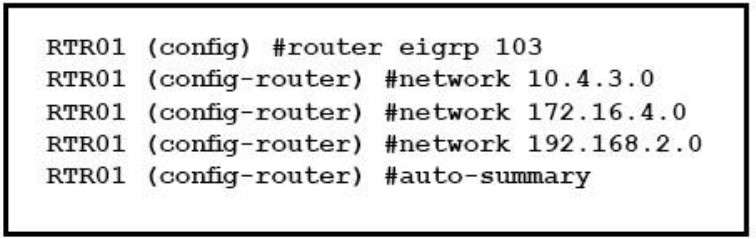

Refer to the exhibit. If RTR01 is configured as shown, which three addresses will be received by other routers that are running EIGRP on the network? (Choose three)

Choose 3 — select all that apply

A 192.168.2.0

B 10.4.3.0

C 10.0.0.0

D 172.16.0.0

E 172.16.4.0 F. 192.168.0.0

Q139 (none)

Which two options are the best reasons to use an IPV4 private IP space?(choose two)

Choose 2 — select all that apply

A to enable intra-enterprise communication

B to implement NAT

C to connect applications

D to conserve global address space E. to manage routing overhead

Q140 (none)

Which technique can you use to route IPv6 traffic over an IPv4 infrastructure?

A NAT

B 6to4 tunneling

C L2TPv3

D dual-stack
