CCNA Quiz — Page 11 (Q110–Q120)

Q110 Not categorized

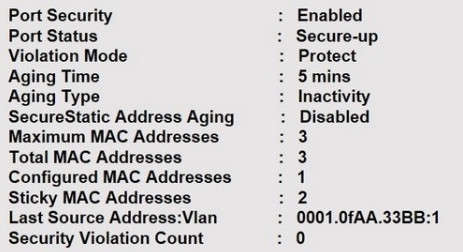

Refer to the exhibit. Which two events occur on the interface, if packets from an unknown Source address arrive after the interface learns the maximum number of secure MAC address? (Choose two.) A. The security violation counter dose not increment

Choose 2 — select all that apply

B The port LED turns off

C The interface is error-disabled

D A syslog message is generated

E The interface drops traffic from unknown MAC address

Q111 Not categorized

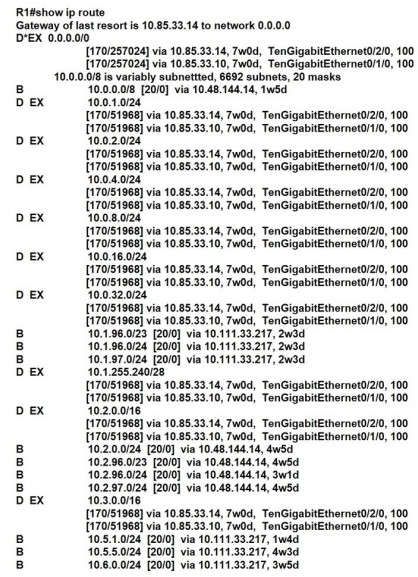

Refer to the exhibit. Which two statements about the network environment of router R1 must be true? (Choose two.) A. there are 20 different network masks within the 10.0.0.0/8 network

Choose 2 — select all that apply

B A static default route to 10.85.33.14 was defined

C Ten routes are equally load-balanced between Te0/1/0.100 and Te0/2/0.100

D The 10.0.0.0/8 network was learned via external EIGRP

E The EIGRP administrative distance was manually changed from 90 to 170

Q112 Not categorized

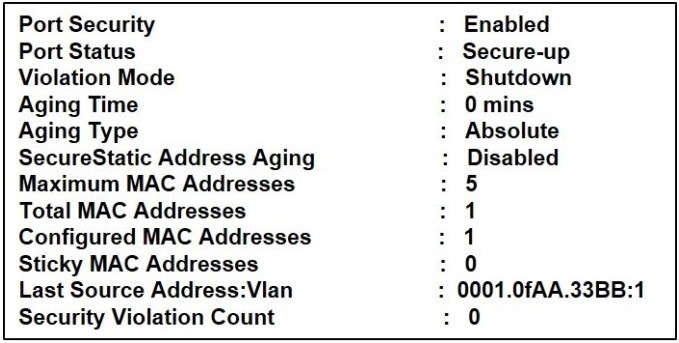

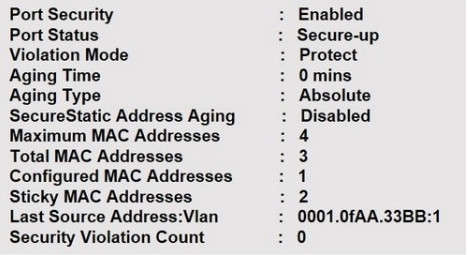

Refer to the exhibit. Which statement about the interface that generated the output is true? A. Five secure MAC addresses are dynamically learned on the interface.

B A syslog message is generated when a violation occurs.

C One secure MAC address is manually configured on the interface.

D One secure MAC address is dynamically configured on the interface.

Q113 Not categorized

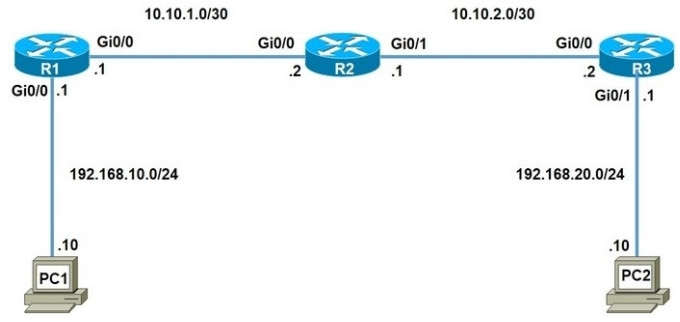

Refer to the exhibit. When PC 1 sends a packet to PC2,the packet has. Which source and destination IP address when it arrives at interface Gi0/0 on router R2? A. source 192.168.10.10 and destination 10.10.2.2

B source 192.168.20.10 and destination 192.168.20.1

C source 192.168.10.10 and destination 192.168.20.10

D source 10.10.1.1 and destination 10.10.2.2

Q114 Not categorized

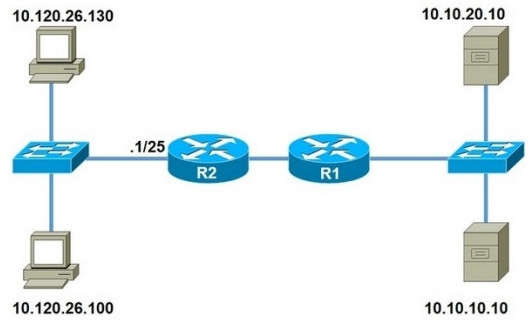

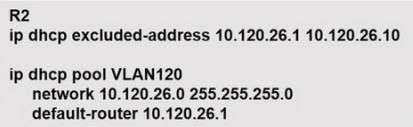

Refer to the exhibit Users in your office are complaining that they cannot connect to the severs at a remote site. When troubleshooting, you find that you can successfully reach the severs from router R2. What is the most likely reason that the other users are experiencing connection failure? A. interface ports are shut down on the remote servers

B The DHCP address pool has been exhausted

C The ip helper-address command is missing on the R2 interface that connects to the switch

D VLSM is misconfigured between the router interface and the DHCP pool.

Q115 Not categorized

After you deploy a new WLAN controller on your network, which two additional tasks should you consider? (Choose two)

Choose 2 — select all that apply

A deploy load balancers

B configure additional vlans

C configure multiple VRRP groups

D deploy POE switches

E configure additional security policies

Q116 Not categorized

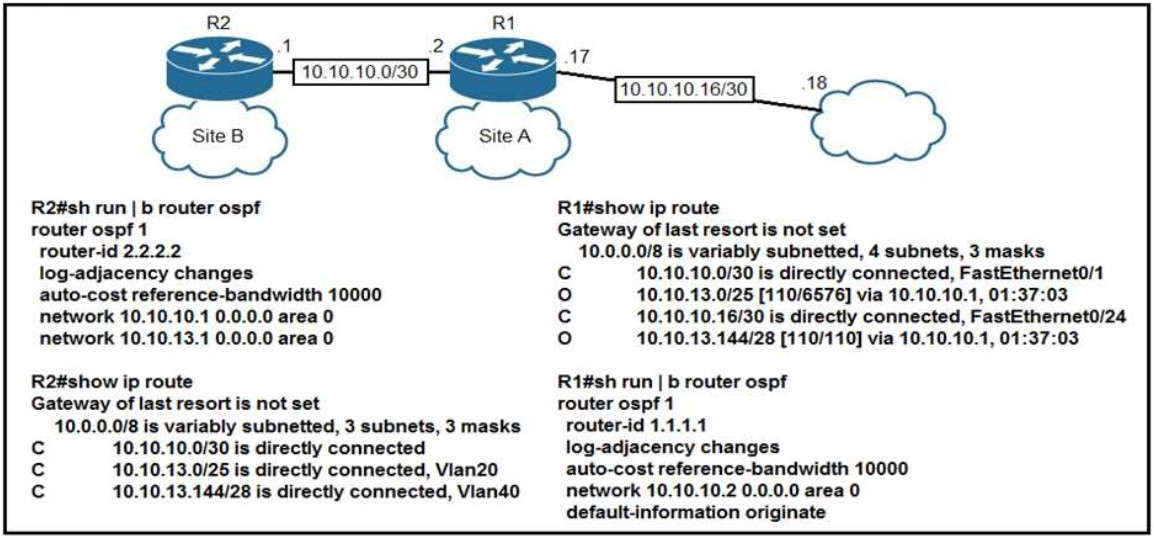

Refer to the exhibit. The default-information originate command is configured under the R1 OSPF configuration. After testing, workstations on VLAN 20 at Site B cannot reach a DNS server on the Internet. Which action corrects the configuration issue?

A Add the default-information originate command on R2.

B Add the always keyword to the default-information originate command on R1.

C Configure the ip route 0.0.0.0 0.0.0.0 10.10.10.18 command on R1.

D Configure the ip route 0.0.0.0 0.0.0.0 10.10.10.2 command on R2.

Q117 Not categorized

Which of the following is the JSON encoding of a dictionary or hash?

A {“key”:”value”}

B [“key”,”value”]

C {“key”,”value”}

D (“key”:”value”)

Q119 Not categorized

Which command verifies whether any IPv6 ACLs are configured on a router?

A show ipv6 interface

B show access-list

C show ipv6 access-list

D show ipv6 route

Q120 Not categorized

Which command can you enter to allow Telnet to be supported in addition to SSH?

A transport input telnet ssh

B transport input telnet

C no transport input telnet

D privilege level 15
